Product Details:
|
| Standards: | ASTM D2565, ISO 4892.2 ,GB/T16422.2, ASTMG155-05a | Product Name: | Xenon-arc Exposure Of Plastics Intended For Outdoor Applications Test Chamber |
|---|---|---|---|
| Warranty: | 12 Months | Temperature Range: | RT+10℃~80℃ |
| Humidity Range: | 50%±5% | Xenon Lamp Power: | 6.5kw |
| High Light: | Plastics Xenon Arc Test Chamber,6.5kw Xenon Arc Test Chamber,ASTMG155-05a Xenon Arc Test Chamber |
||

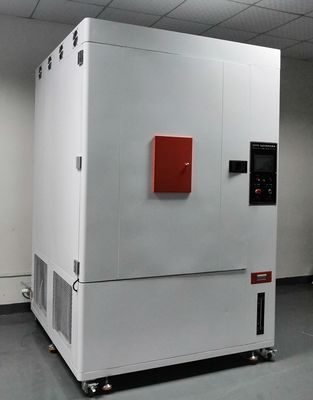

ASTM D2565 Xenon-arc Exposure of Plastics Intended for Outdoor Applications Test Chamber ASTMG155-05a
Application:
Suitable for plastic, rubber, paint, ink, paper, medicine, food, cosmetics, textiles, auto parts, packaging materials, building materials, electronic and electrical products, etc.For scientific research, product development and quality control to provide the corresponding environment simulation and accelerated test, provide important test basis.
Standards:
- ASTM D2565
- ISO 4892.2
- ASTMG155-05a.
Performance index:
| Temperature range | RT+10℃~80℃ |
| Humidity range | 50%±5% |
| Rainfall time | 1 ~ 9999 minutes, adjustable |
| Rainfall cycle | 1-240 minutes, adjustable intervals |
| Spectral wavelength | 300nm ~ 400nm |
| Xenon lamp power | 6.5kw (life: 1800 hours, water-cooled) |
| Radiation intensity | 0-60w/㎡ |
| Ambient temperature | ±5℃ ~ +30℃ ≤85%R•H |
| Test time | 6000hr |
| Power supply voltage | AC380V±10% 50± 0.5hz |
Time controller:
- imported programmable time computer integrated controller
Accuracy range:
- setting accuracy: temperature ±0.1℃, humidity ±0.1℃R•H; Indicating accuracy: temperature ±0.1℃, humidity ±0.1℃R•H
Temperature and humidity sensor:
- platinum resistance Pt100Ω/mv
Humidification system:
- external isolation type all stainless steel shallow surface evaporation type humidifier
Blackboard temperature:
- bimetal blackboard thermometer 55℃~75℃
Water supply system:
- automatic control of humidifying water supply, xenon lamp cooling water circulation
Temperature controller:
- mported microcomputer integrated temperature and humidity controller
Humidity:
- 30%~65%RH at irradiation and 90%RH at darkness
Circulation system:
- heat - resistant low noise air - conditioned motor, multi - blade centrifugal wheel
Outer box material:
- advanced spray color steel plate /SUS304 stainless steel mist line hair texture treatment
Inner box material:
- SUS304 high quality stainless steel polished board
Material of sample frame:
- SUS304 high quality stainless steel bar
Door frame insulation:
- high and low temperature aging silicone rubber door seal strip
Standard configuration:
- 1 set of anti-radiation glass window, 1 dynamic test rack, 2 xenon lamp tubes
Safety protection:
- leakage, short circuit, over temperature, water shortage, motor overheating, over current protection/controller power failure memory.
