Product Details:
|
| Product Name: | Automotive Interior Materials Burning Chamber | Standard: | GB8410、FMVSS571.302、DIN7520、ISO 3795 |
|---|---|---|---|
| Power Supply: | 220V 50Hz | Box Size: | 385*204*360mm |
| High Light: | textile flammability testing,horizontal flammability tester |
||

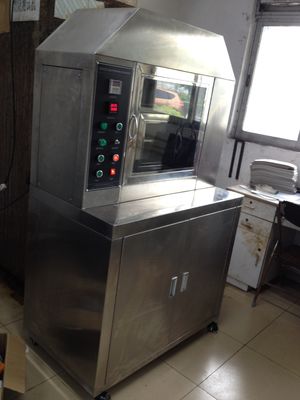

DIN7520 Automotive Interior Materials Burning Chamber FMVSS571.302
Basic introduction:
Suitable for the assessment of combustion characteristics of automotive interior materials, suitable for automotive interior materials, such as: automotive sunscreen film, automotive handgrip cover, automotive floor mat, automotive non-slip pad, cushion, and other automotive interior products.
Performance characteristics :
The control box and combustion box are made of stainless steel, beautiful appearance, smoke resistance, gas corrosion, and high degree of automation of the control system, with automatic ignition, automatic air supply, automatic timing, automatic end of the test and other functions, easy to observe and record, stable and reliable use.
Technical parameters:
| Box size | 385*204*360mm |
| Size parameters of burner | inner diameter of nozzle 9.5mm, effective length of nozzle 100mm |
| Combustion time | 0 ~ 99 minutes and 99 seconds |
| Flame height | it can be adjusted from 20mm to 100mm according to the standard requirements |
| Combustion gas | high purity liquefied gas |
| burning Angle | 90 ° (0 °) |
| thermometer | 150 ºC, resolution: 1 ºC |
| Complete set of configuration | this test machine is composed of control box, combustion box body, combustion lamp, solenoid valve, high-voltage igniter, thermometer, 10, signal control line and sample upper and lower support. |
| Power supply | AC 220V / 50Hz |
Standard:
GB8410,FMVSS571.302,DIN7520,ISO 3795
