UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine

UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine
UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine

Large Image :  UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: ISO1210, UL94, ASTM D635, D4804, 3801, IEC707, IEC 60695-11-10:99
Model Number: DX8379
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 sets per month
Contact Now

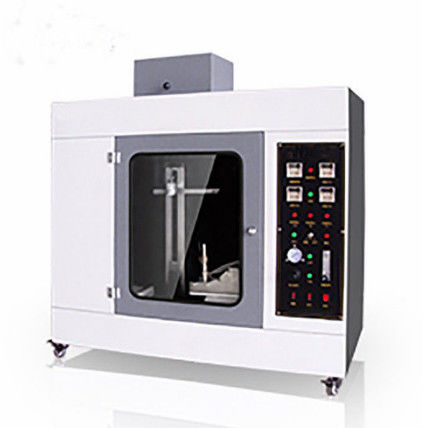

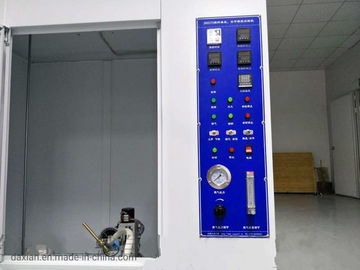

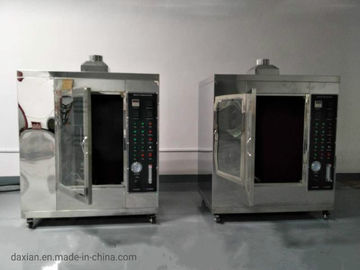

UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine

Description
Product Name: UL94 Plastic Vertical Horizontal Combustion Testing Machine Power Supply: 380V,50/60HZ
Standard: ISO 9705、ISO 13784-1、ASTM E 1537、EN 14390、ISO5660-1 Dimension Of Apparatus: 1100mm(W)*700mm(D)*1300mm (H)
Highlight:

vertical flammability chamber

,

textile flammability testing

Automatic UL94 Plastic Vertical Horizontal Combustion Testing Machine



Parameter:



1. Burner: Φ9.5mm ± 0.3mm bunsen burner

2. Dip angle:00, 200, 450 (manual adjustment)

3. Flame height: 20mm ± 2mm to 180mm±10mm (adjustable)

4. Flame time: 0-999.9s±0.1s (adjustable)

5. After flame time: 0-999.9s±0.1s (auto record, manual pause)

6. After glow time: 0-999.9s±0.1s (auto record, manual pause)

7. Fuel gas: 98% methane

8. Flow and pressure record: flowmeter and manometer

9. Test temperature range: 0-10000C

10. Flame temperature required: heat up from 1000C±50C to 7000C±30C within the time of 44s±2s and 54s±2s

11. Thermocouple: diameter of 0.5mm K type thermocouple (2 pieces)

12. Test background: black

13. Volume of chamber: 0.75 CBM

14. Dimension of apparatus: 1100mm(W)*700mm(D)*1300mm (H)

15. Power supply: AC220V, 50Hz, ≤500W



UL94 Flammability Testing Equipment Plastic Vertical Horizontal Combustion Testing Machine 0

Welcome to visit our factory for sightseeing!

Supplier Company Name Daxian International (HK)CO.,Limited
Company Address Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China
Contact Person Sophia Su
Mobile Number 86-13266221899
Telephone Number 86-0769-82759287



Tag:

vertical flammability chamber,

textile flammability testing,

horizontal flammability tester
