Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: ASTM d4151-2010
Model Number: DX8816
Payment & Shipping Terms:
Minimum Order Quantity: One Set
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 5-8 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 Sets Per Month

Blanket Flammability Testing Equipment ASTM D4151 FTech-ASTM4151 1 Year Warranty

Description
Power: AC 220V/50HZ Weight: 30kg
Ignition Flowmeter Range: 0~60cc/Min Pressure Gauge: 0~0.25Mpa, Accuracy: 0.5
Warranty: 1 Year Usage: Flammability Tester
Standard: ASTM D4151-2010
High Light:

textile flammability testing

,

horizontal flammability tester

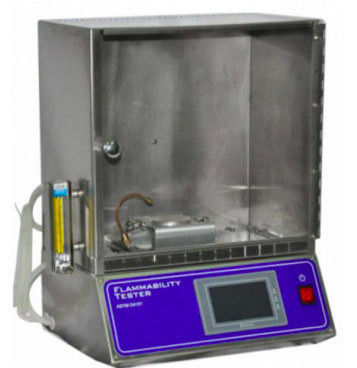

Blanket Flammability Test Machine, ASTM D4151 (FTech-ASTM4151)
Application:
Mainly used to detect the impact of small fire sources on carpets.Used to test the flame retardant property and flame spread property of the fabric surface, it is suitable for bedding (including sheet, blanket, mattress pad, pillow, duvet) and similar products used to cover the bed.
Test principle:
The test method is to burn the sample surface with a standard flame within a specified time, so as to observe the burn, damage degree or color change of the standard test paper, and then to grade the tested fabric.
Performance parameters:

Pressure gauge 0~0.25Mpa, accuracy: 0.5
Igniter high voltage automatic ignition, time can be set
Ignition flowmeter range 0~60cc/min

Combustion timing 0-99.99s arbitrary setting, resolution 0.01s, precision 0.1s
Reburning timing 0 -- 99.99s arbitrary setting, resolution 0.01s, precision 0.1s
Automatic control such as ignition, combustion timing, ignition timing, etc.
Power supply 220V, 50Hz, 50Hz, 3A
Weight 30 kg

The inner dimensions of the test box are 520mm high, 375mm wide and 220mm deep.Made of stainless steel, top 12 vents with a diameter of 12.7mm.Glass observation window in front;Section 6.1 requirements of ASTM d4151-2010;
Sample mounting base and bracket: ASTM d4151-2010 6.2 requirements.
Burner: ASTM D4151-2010 sections 6.3 and 6.4 requirements
The burner is 18 needle, which meets the requirements of ASTMD4151-2010 6.3.
Flame measurement scale: measure burner flame height with accuracy of 1mm;
Control: meet ASTM d4151-2010 6.1.2 requirements
Brush wool device: meet ASTM d4151-2010 6.5 requirements;Consisting of two rows of nylon bristles with diameters of 0.41mm, each cluster contains 20 bristles, and each 25mm has 4 clusters with staggered arrangement. The bristles are flat with a length of 19mm.
