Product Details:
|
Material: | Stainless Steel | Weight: | 20KG |
---|---|---|---|
Timer Accuracy: | 0.1s | Voltage: | AC 220 V ± 10V 50HZ |
Power: | 2000W | Test Furnace: | 0.4 × 0.4 × 0.5m |
Highlight: | vertical flammability chamber,horizontal flammability tester |

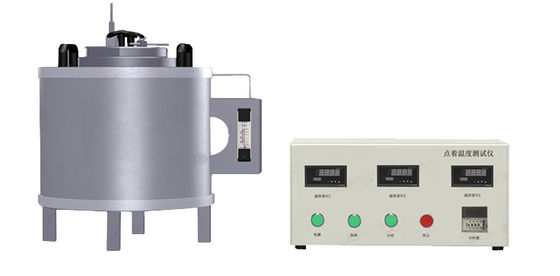

Plastic Ignition Temperature Testing Equipment for ISO 871 / ASTM D1929
Description:
Decompose and release the combustible gas from plastic material under regulated testing conditions,ignited by outer flame and burned a certain time,to measure the minimum temperature of the material.Application comparison within material through the testing results.
Standard:
ASTM D 1929,GB/T 4610,GB/T 9343, ISO 871
Specification:
Furnace tube inner diameter 100 ± 5mm, length 240 ± 20mm, not less than 750 ℃ temperature ceramic tube;
Inner tube diameter 75mm ± 2mm, length 240mm ± 20mm, temperature not lower than 750 ℃;
Stainless steel container Dimensions: diameter 40mm, height 15mm;
1. Butane lighter inside diameter of 2 mm nozzle, the flame height 10 ~ 20mm (adjustable);
2. Temperature of copper furnace can be constant between 150~450 ℃ ;
3. Equipped with built-in fan to provide air source, and precise control of the flow meter is equipped with imported gas flow;
4. Insulating layer is made larger than 60mm thick mineral wool insulation composed of external stainless steel package;
5. Three import thermocouple temperature instrument detects the furnace temperature and the sample temperature;
6. The sample container is made of stainless steel;
7. Automatic temperature program;
8. Ambient temperature: room temperature ~ 40 ℃; Humidity: ≤75%;
9. Voltage: AC 220 V ± 10V 50HZ; use of power: 3000W;
10. Temperature control accuracy: ± 2 ℃, can be adjusted between 150 ℃ ~ 450 ℃;
11. Display accuracy: ± 0.5 ℃;
12. Timer Accuracy 0.1s;
13. Dimensions: test furnace (0.4 × 0.4 × 0.5) m;
14. Weight: 20 Kg.
