Riser Cable Vertical Flame Test Shaft UL1666 Optical Fiber Combustion Chamber 7.12m

Large Image : Riser Cable Vertical Flame Test Shaft UL1666 Optical Fiber Combustion Chamber 7.12m

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DX
Certification:	CE, ISO 9001:2015
Model Number:	DX8305

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 20000-35000 / Set
Packaging Details:	Plywood case with waterproof film and export-grade fumigation-free crate
Delivery Time:	45-60 days after deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	20 Sets per Month

Contact Now

Riser Cable Vertical Flame Test Shaft UL1666 Optical Fiber Combustion Chamber 7.12m

Description

Test Standard:	UL 1666	Chamber Structure:	Three Story Concrete Wall Shaft
Chamber Height:	7.12 M	External Dimensions:	7.12m H X 1.3m W X 2.5m L
Thermocouples:	Eight Type 28 Chromel-Alumel	Layer Dimensions:	First 1.22m, Second 3.66m, Top 2.24m
Data Acquisition:	PLC And Computer, 5 Second Interval Logging	Ignition Device:	1/2 Inch Steel Pipe With Dispersion Plate
Pressure Gauge:	U-type Manometer 0-12 Pa	Burner Gas:	CP Grade Propane, 2500 Btu/ft3
Highlight:	UL1666 riser cable flame test shaft , 7.12m optical fiber combustion chamber , vertical flame test equipment

UL1666 Riser Cable Vertical Shaft Flame Propagation Test Equipment (DX8305)

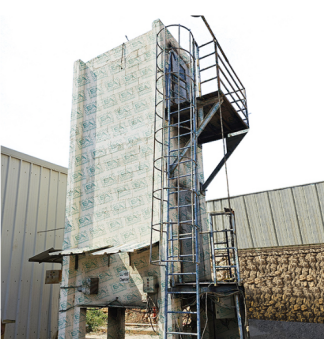

The DX8305 vertical shaft flame propagation test equipment measures the height of flame travel on electric and optical fiber riser cables in a vertical shaft. A three story concrete wall shaft of 7.12 m height reproduces a building riser condition, and eight thermocouples log temperature during the test to support UL 1666 certification for riser-rated cables.

Applicable Standard

UL 1666

Technical Specifications

Chamber structure	Three story concrete wall shaft
Chamber height	7.12 m
External dimensions	7.12m H x 1.3m W x 2.5m L
Layer dimensions	First 1.22m, second 3.66m, top 2.24m
Thermocouples	Eight type 28 Chromel-Alumel
Ignition device	1/2 inch steel pipe with dispersion plate
Pressure gauge	U-type manometer 0-12 Pa
Data acquisition	PLC and computer, 5 second interval logging
Burner gas	CP grade propane, 2500 Btu/ft3

Application

Designed for cable manufacturers and third-party laboratories testing riser cables installed in vertical shafts of high-rise buildings, including power, control and optical fiber cables.
