DX8348 Building Material Heat Release Rate Flammability Test Apparatus Cone Calorimeter ISO 5660

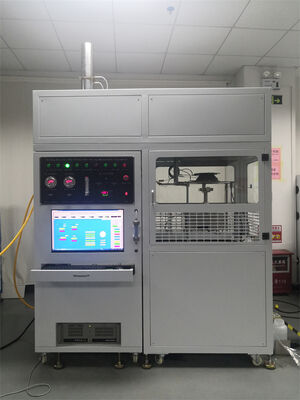

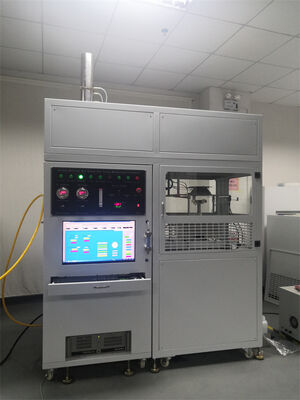

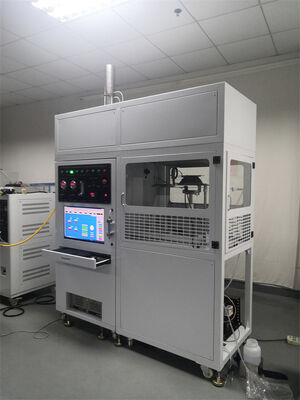

Large Image : DX8348 Building Material Heat Release Rate Flammability Test Apparatus Cone Calorimeter ISO 5660

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DX
Certification:	CE, ISO 9001:2015
Model Number:	DX8348

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 15000-30000 / Set
Packaging Details:	Plywood case with waterproof film and export-grade fumigation-free crate
Delivery Time:	30-45 days after deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	20 Sets per Month

Contact Now

DX8348 Building Material Heat Release Rate Flammability Test Apparatus Cone Calorimeter ISO 5660

Description

Test Standard:	ISO 5660-1, EN 45545-2	Radiant Heater Power:	5000 W At 230V
Max Irradiance:	Up To 75 KW/m2	Heater Thermocouples:	Three K-type, +/-10 C Control
Specimen Weight Resolution:	0.1 G, Accuracy +/-0.3 G	Specimen Mass Range:	At Least 500 G
Specimen Holder:	106 +/-1 Mm Opening, 25 +/-1 Mm Depth	Exhaust Flow:	Centrifugal Fan Up To 0.035 M3/s
Orifice Plate Diameter:	57 +/-3 Mm	Oxygen Analyser:	Paramagnetic, 0-25% Range
Heat Flux Meter:	Water-cooled, 100 +/-10 KW/m2
Highlight:	Cone Calorimeter ISO 5660 , Heat Release Rate Test Apparatus , Building Material Flammability Tester

DX8348 Building Material Heat Release Rate Flammability Test Apparatus (Cone Calorimeter)

This supply testing apparatus measures the heat release rate and smoke production rate using a cone calorimeter. The specimen is exposed in the horizontal orientation to a controlled level of irradiance with an external igniter, in accordance with the ISO 5660-1 standard.

Applicable Standards

ISO 5660-1
EN 45545-2

Main Components and Specifications

Cone radiant electric heater	5000 W at 230V operating voltage
Irradiance level	Maintained at a preset level up to 75 kW/m2
Heater thermocouples	Three K-type for average heater temperature control (+/-10 C)
Radiation shield	Removable, protects specimen before test start
Weighing device	Resolution 0.1 g, accuracy +/-0.3 g, 10-90% response 4s or less, specimen at least 500 g
Specimen holder	Square pan, 106 +/-1 mm opening, 25 +/-1 mm depth, ceramic fibre blanket density 65 kg/m3 x 13 mm
Exhaust gas system	Centrifugal fan up to 0.035 m3/s, hood, intake, exhaust duct, orifice plate flowmeter
Restrictive orifice	Internal diameter 57 +/-3 mm
Gas sampling	Sampling ring probe, 1.0-1.6 mm sheathed-junction thermocouples, flow rate meter
Ignition circuit and timer	Spark plug from 10kV transformer or spark igniter, time accurate to 1 s per hour
Oxygen analyser	Paramagnetic, 0-25% range, drift less than 50 ul/l per 30 min, response less than 12s
Heat flux meters	Water-cooled, range 100 +/-10 kW/m2

Key Features

Measures heat release rate and smoke production rate simultaneously
Horizontal specimen orientation with external igniter
Widely used for building materials, railway and transport flammability evaluation
