UL1666 Vertical Shaft Cable Flame Propagation Test Equipment 7.12m Concrete Chamber Optical Fiber

Large Image : UL1666 Vertical Shaft Cable Flame Propagation Test Equipment 7.12m Concrete Chamber Optical Fiber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DX
Certification:	CE, ISO 9001:2015
Model Number:	DX8305

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 20000-35000 / Set
Packaging Details:	Plywood case with waterproof film and export-grade fumigation-free crate
Delivery Time:	45-60 days after deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	20 Sets per Month

Contact Now

UL1666 Vertical Shaft Cable Flame Propagation Test Equipment 7.12m Concrete Chamber Optical Fiber

Description

Test Standard:	UL 1666	Chamber Structure:	Three Story Concrete Wall Shaft
Chamber Height:	7.12 M	Layer Dimensions:	First 1.22m, Second 3.66m, Top 2.24m
External Dimensions:	7.12m H X 1.3m W X 2.5m L	Pressure Gauge:	U-type Manometer 0-12 Pa
Ignition Device:	1/2 Inch Steel Pipe With Dispersion Plate	Burner Gas:	CP Grade Propane, 2500 Btu/ft3
Thermocouples:	Eight Type 28 Chromel-Alumel	Data Acquisition:	PLC And Computer, 5 Second Interval Logging
Highlight:	UL1666 vertical shaft cable flame test , 7.12m concrete chamber fire tester , optical fiber flame propagation equipment

UL1666 Vertical Shaft Cable Flame Propagation Test Equipment (DX8305)

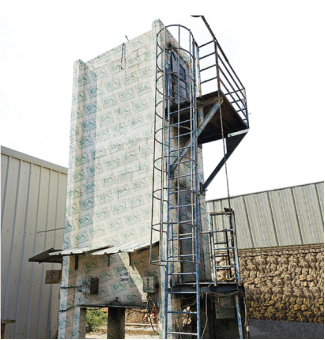

The DX8305 vertical shaft cable and optical fiber flame test machine is suitable for testing electric and optical fiber cables installed inside a shaft or running vertically through one floor height, measuring the flame propagation height. It conforms to the UL 1666 test standard for flame propagation height of electrical and optical-fiber cables installed vertically in shafts.

Applicable Standard

UL 1666

Performance Parameters

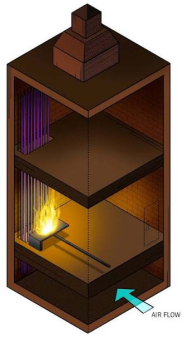

Chamber structure	Concrete wall shaft, three stories
Layer dimensions	First layer 1.22 m, second layer 3.66 m, top layer 2.24 m
External dimensions	7.12 m H x 1.3 m W x 2.5 m L
Pressure gauge	U-type manometer, chamber pressure maintained at 0-12 Pa
Temperature and humidity meter	Measures chamber temperature and humidity
Ignition device	1/2 inch steel pipe with elbow and steel dispersion plate, propane flow meter at gas inlet
Burner gas	CP grade propane, heat value 2500 Btu per cubic foot
Exhaust fan	Steel duct at chamber top center with anemometer
Thermocouples	Eight type 28 Chromel-Alumel thermocouples in second layer
Data acquisition	PLC and computer system, records airflow and temperatures every 5 seconds with curve display

Key Features

Bi-directional air velocity probe at horizontal and vertical center of first layer
Electronic pressure gauge for differential pressure measurement
Vertical flame propagation height measurement for electric and optical fiber cables
