UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262

UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262
UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262 UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262

Large Image :  UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262

Product Details:
Place of Origin: Guangdong, China
Brand Name: DX
Certification: CE, ISO 9001:2015
Model Number: DX8788
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 25000-45000 / Set
Packaging Details: Plywood case with waterproof film and export-grade fumigation-free crate
Delivery Time: 45-60 days after deposit
Payment Terms: T/T,L/C,Western Union
Supply Ability: 20 Sets per Month
Contact Now

UL910 Steiner Tunnel Horizontal Flame Smoke Test Furnace 7.6m CMP Cable ASTM E84 NFPA262

Description
Test Standard: ASTM E84, UL 910, NFPA 262 Tunnel Length: 7.6 M
Chamber Inner Size: 305 X 451 Mm Chamber Material: SUS304 Stainless Steel With Refractory Brick Lining
Burner Heat Output: 5.3 MJ/min, Max 100 MJ/min Gas Flow Range: 0-160 L/min
Blower Power: 380V 50Hz 3kW With Frequency Converter, 8000 M3/h Ignition System: High Voltage 12KV 50mA Automatic
Pressure Detection: 0-250 Pa, Accuracy +/-0.5 Pa Smoke Density System: Linear Sensor With Independent Signal Processing
Data Sampling Frequency: 1 Hz
Highlight:

UL910 Steiner Tunnel Flame Test Furnace

,

ASTM E84 CMP Cable Fire Tester

,

NFPA262 Horizontal Smoke Test Equipment

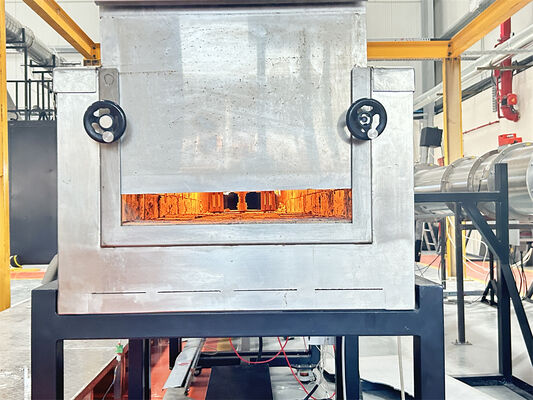

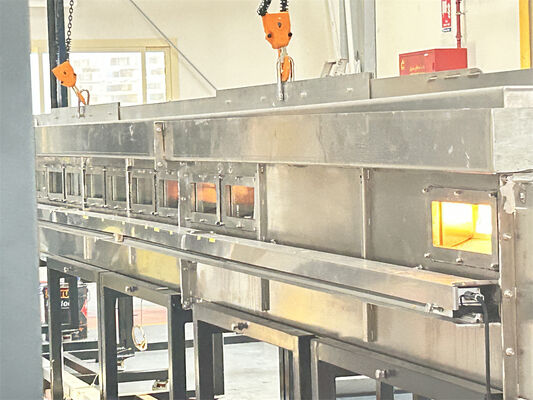

UL910 Horizontal Steiner Tunnel Flame and Smoke Test Furnace (DX8788)

The DX8788 Steiner Tunnel is mainly used to test the flame-retardant performance of CMP grade wire and cable, typically used in horizontal subsystems where cables are laid directly in ventilated or forced-ventilation environments without metal conduit. This standard represents the most stringent flame test in the US UL and the entire wire and cable flame-retardant testing field. Only fluoropolymer-sheathed cables can pass this test. Because fluoroplastics have a high decomposition temperature (above 400 C) and a high ignition point (above 800 C), they are not easily ignited when the fire is small, giving them better fire performance than other organic materials.

Applicable Standards

  • ASTM E84
  • UL 910
  • NFPA 262

Tunnel Furnace Technical Specifications

Tunnel length7.6 m, stainless steel with refractory brick lining
Chamber inner size305 x 451 mm
BurnerDual-head copper gas burner, output 5.3 MJ/min, max 100 MJ/min
Gas flow range0-160 L/min, controlled by mass flow meter, NIST calibrated
Ignition systemHigh voltage 12KV, 50mA automatic ignition
Blower380V 50Hz 3kW with frequency converter, max flow 8000 m3/h
Pressure detection0-250 Pa, accuracy +/-0.5 Pa, system accuracy +/-2 Pa
Observation windowDouble-layer quartz glass with flame position indicator
SealingWater groove seal, 2mm SUS304, prevents smoke leakage
Data loggingAutomatic 1 Hz temperature and smoke density recording

Auxiliary Systems

  • Tap water source system
  • Methane combustion gas system
  • Overhead crane lifting system
