UL1685 Bunched Cable Vertical Tray Flame Test Equipment 20kW 2438mm Chamber IEEE 1202

Large Image : UL1685 Bunched Cable Vertical Tray Flame Test Equipment 20kW 2438mm Chamber IEEE 1202

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	DX
Certification:	CE, ISO 9001:2015
Model Number:	DX8297

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 15000-25000 / Set

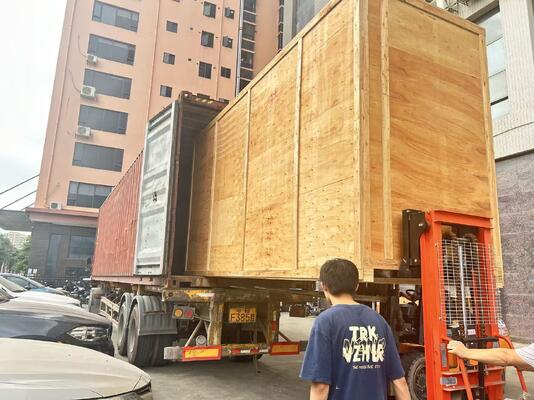

Packaging Details:	Plywood case with waterproof film and export-grade fumigation-free crate
Delivery Time:	30-45 days after deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	30 Sets per Month

Contact Now

UL1685 Bunched Cable Vertical Tray Flame Test Equipment 20kW 2438mm Chamber IEEE 1202

Description

Test Standard:	UL 1685, IEEE 383, IEEE 1202	Chamber Volume:	19.93 M3
Chamber Dimensions:	2438 X 2438 X 3353 Mm	Burner Heat Output:	20 KW (70000 Btu/hr)
Burn Duration:	20 Minutes	Cable Tray Size:	305 X 76 X 2438 Mm
Gas Supply:	Propane And Compressed Air	Power Supply:	AC 220V 50/60Hz 15A
Machine Weight:	Approx. 650 Kg	Data Acquisition:	PCB Board With Computer System
Highlight:	UL1685 bunched cable flame test equipment , 20kW vertical tray flame tester , IEEE 1202 fire testing chamber

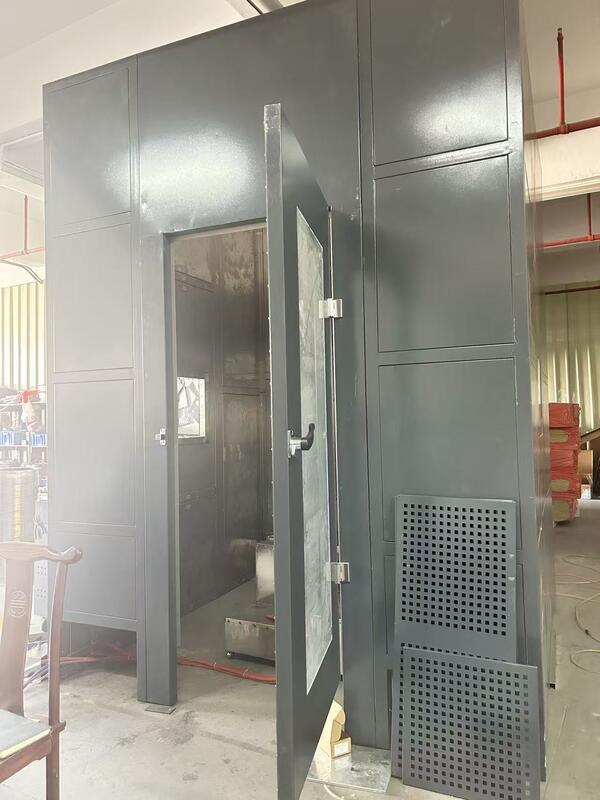

UL1685 Bunched Cable Vertical Tray Flame Test Equipment (DX8297)

The DX8297 wire and cable fire test equipment is designed to evaluate the ability of single or bunched cables to suppress flame propagation under specified test conditions. The specimen is burned for 20 minutes inside a defined chamber volume, ignited by a vertically positioned flame with a theoretical heat output of 20 kW (70,000 Btu/hr), to assess the flame-retardant performance of the cable.

Applicable Standards

UL 1685
IEEE 383
IEEE 1202

Technical Specifications

Test chamber dimensions	2438 (L) x 2438 (W) x 3353 (H) mm
Chamber volume	19.93 m3, floor area 5.94 m2
Burner heat output	20 kW (70,000 Btu/hr), vertical flame
Burn duration	20 minutes
Cable tray size	305 (L) x 76 (W) x 2438 (H) mm
Steel ladder	Width 25 +/- 6 mm, span 229 mm
Data acquisition	PCB board collecting internal and burner flame temperatures
Gas control	Mass flow controller with solenoid valve on/off
Power supply	AC 220V, 50/60Hz, 15A
Machine weight	Approx. 650 kg

Smoke Density Measurement System

Thermocouples and bi-directional air velocity probes measure exhaust duct temperature and airflow speed, including turbulent velocity of high-temperature combustion gas. The smoke density system delivers accurate, reproducible readings for certified flame-retardant cable evaluation.
