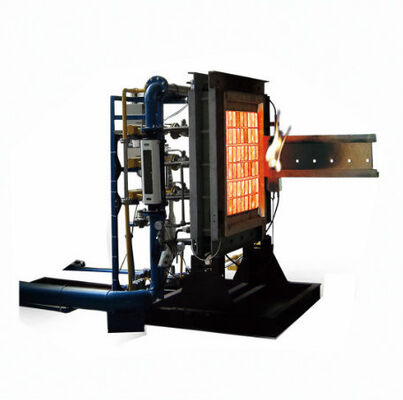

EN 1187 Roof Covering Fire Reaction Test Apparatus ISO 12468-1 Flame Spread Testing Machine 600x600mm Specimen

EN 1187 Roof Covering Fire Reaction Test Apparatus

The ENV-1187 Roof Covering Fire Reaction Test Apparatus is a professional fire testing system designed to evaluate the fire reaction performance of roof covering materials under combined wind and heat radiation conditions. It fully complies with GB/T 30735-2014 and supports three test methods: Method A corresponding to EN 1187-t1, and Method B and Method C corresponding to ISO 12468-1.

Key Features

• Three Test Methods in One System: Method A (EN 1187-t1), Method B and Method C (ISO 12468-1) for comprehensive roof covering fire reaction evaluation.
• Adjustable Flame Impact Angle 0-50°: Flame impact angle adjustable from 0° to 50°, satisfying the 45° flame angle requirement of EN 1187 t1 and ISO 12468-1 Method A.
• SUS304 Stainless Steel Wind Duct: Wind duct constructed of 2mm SUS304 stainless steel plate with inverter-controlled fan for stable wind supply.
• High Power Fan System: 5.5kW fan with maximum airflow of 250 m³/min and 3-phase 380V inverter drive; wind speed adjustable to meet ISO 12468-1 Method B and C requirements.
• 600x600mm Specimen Capacity: Standard test frame accommodates 600mm x 600mm roof covering specimens.
• Complete Ignition System: Equipped with gas burners and automatic ignition device plus digital display instrumentation for precise test control.

Technical Specifications

Applications

Widely used in fire testing laboratories, building material research institutes, roof covering manufacturers and third-party certification bodies for fire reaction classification testing of roof materials.

Customized OEM/ODM support available. Contact us for your fire testing solution.
