ISO 834-1 Vertical Fire Resistance Test Furnace for Fire Door Window Glazed Partition

Large Image : ISO 834-1 Vertical Fire Resistance Test Furnace for Fire Door Window Glazed Partition

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Daxian
Certification:	ISO 9001:2015, ISO 834-1
Model Number:	DX8364

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 20000-40000 / Set
Packaging Details:	Export-grade wooden case with moisture-proof film and shock-absorbing foam
Delivery Time:	45-60 days for production
Payment Terms:	T/T,L/C
Supply Ability:	5 Sets per Month

Contact Now

ISO 834-1 Vertical Fire Resistance Test Furnace for Fire Door Window Glazed Partition

Description

Test Standard:	ISO 834-1, GB/T 9978.1	Furnace Type:	Vertical
Max Temperature:	1250 C	Furnace Interior Size:	3000 X 3000 X 1500 Mm
Specimen Fire Area:	3000 X 3000 Mm	Burner Type:	High-speed Gas Burner
Fuel:	Propane / Natural Gas	Control System:	PLC + Touch Screen
Temperature Accuracy:	+/- 15 C	Pressure Accuracy:	+/- 2 Pa
Highlight:	ISO 834-1 fire resistance test furnace , vertical fire door test equipment , fire window glazed partition tester

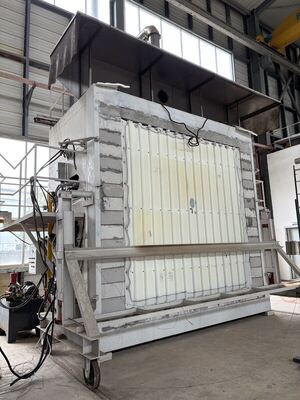

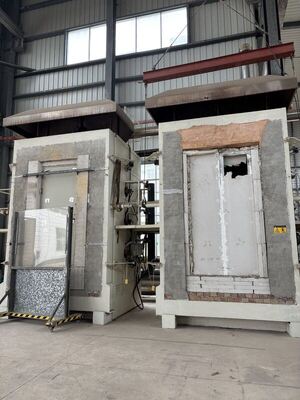

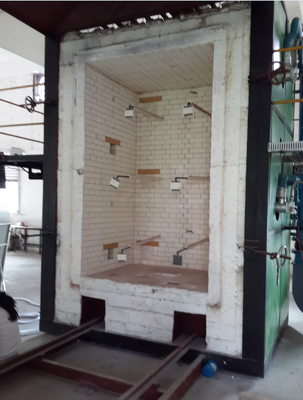

Vertical Fire Resistance Test Furnace for Fire Doors, Windows and Glazed Partitions

The DX8364 Vertical Fire Resistance Test Furnace is engineered to evaluate the fire resistance performance of building components such as fire doors, fire windows, fire-resistant glazed partitions and non-load-bearing walls under the standard ISO 834-1 time-temperature curve. It is widely used by fire research institutes, building material testing laboratories and third-party certification bodies.

Test Scope

Fire resistance testing of fire doors and fire windows
Fire resistance testing of fire-resistant glazed partitions and curtain walls
Fire resistance testing of non-load-bearing walls
Symmetric and asymmetric specimen testing under identical working conditions

Key Features

Compliant with ISO 834-1 and GB/T 9978.1 fire resistance test standards
Furnace temperature up to 1250 C with high-precision K-type thermocouples
PLC touch screen control system with real-time temperature and pressure monitoring
High-speed gas burners with propane or natural gas fuel supply
Furnace pressure control accuracy of +/- 2 Pa

Technical Parameters

Furnace Type	Vertical
Max Temperature	1250 C
Furnace Interior Size	3000 x 3000 x 1500 mm
Specimen Fire Area	3000 x 3000 mm
Control System	PLC + touch screen

Product Images
