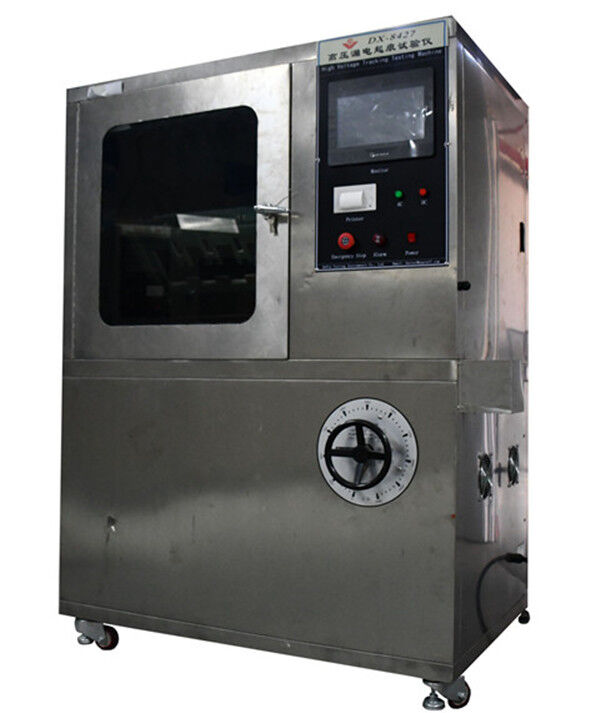

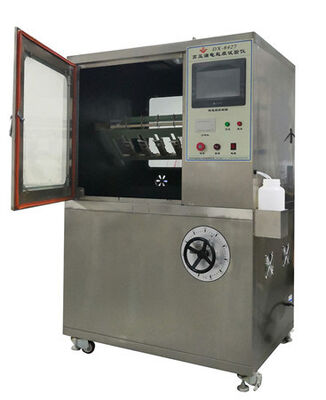

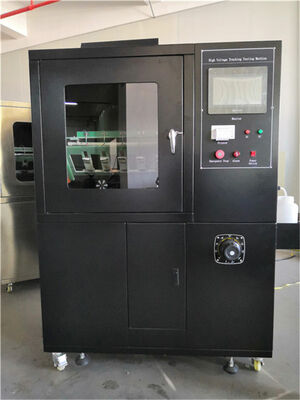

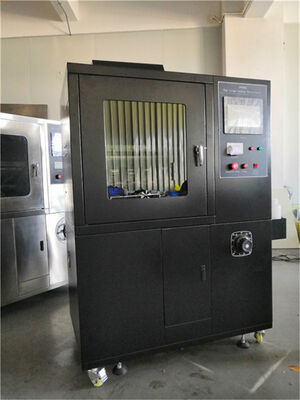

IEC60587 Track and ErrosionTesting Machine ASTMD2303 Insulator Testing Machine

 IEC60587 AC High Voltage Tester Machine Leakage Trace Testing Machine ASTMD2303

Scope of application:
It is mainly suitable for testing the resistance to electrical traces and corrosion of electrical and electronic products, household appliances and their materials. It simulates the use of liquid pollutants and inclined samples at power frequency (48Hz-62Hz) to evaluate the resistance to electrical traces and corrosion of electrical insulation materials used under harsh environmental conditions through the measurement of resistance to electrical traces and corrosion. Under the influence of humidity and impurities in electrical products, insulation leakage may occur between charged parts of different polarities or between charged parts and grounded metals, resulting in electric arcs that can cause breakdown and short circuits in electrical appliances or material erosion due to discharge, and even ignite and cause fires. This tester is a destructive test conducted on insulation materials to simulate the above situation. It is used to measure and evaluate the relative resistance of insulators to leakage and tracing under the action of electric fields and impurity water at a specified voltage. It is suitable for solid electrical insulation materials and products of electrical and electronic products, household appliances, such as relay sockets, transfer switch covers, contactors, etc.

Compliant with standards:

IEC60587,ASTMD2303.

Technical parameters:
1. Electrode: 0.5mm thick Material: Stainless steel;
2. Distance between upper and lower electrodes: 50.0mm ± 0.1;
3. Test voltage: 100V-6000V infinitely adjustable;
4. Voltage regulator: Output: adjustable from 0 to 250V, capacity 5KVA;
5. When the circuit current is 60mA, cut off the voltage output;
6. Test time: 6 hours;
7. Dropping accuracy: 0.5%;
8. Voltage stability: ± 1%;
9. High precision voltage regulator: output AC220V power 6000W, accuracy ± 1%;
10. Trace judgment: According to the standard GB/T653-2003/4.1.2, apply a voltage (2.5kV, 3 5kV and 4.5kV), and drip the contaminated liquid at a certain flow rate. If the current is below 60mA and there is no current for 6 hours, it is considered to have passed through;
11. Dropping device: using a Leifer precision peristaltic pump, with a flow range of 0.00185 to 20 milliliters per minute, a working speed of 0.1 to 50 revolutions per minute, and a flow accuracy error of less than 0.5%;
12. Output voltage: AC/DC (switchable)
13. Chassis: Made of SUS304 stainless steel (brushed surface);
14. The sewage tank is made of 316 stainless steel and equipped with a sealing device.
15. The volume is 0.56m3, and the studio volume is 900L * 650W * 950H (mm);
16. Instrument dimensions: 1200L * 750W * 1800H (mm)
17. Weight: Approximately 200KG

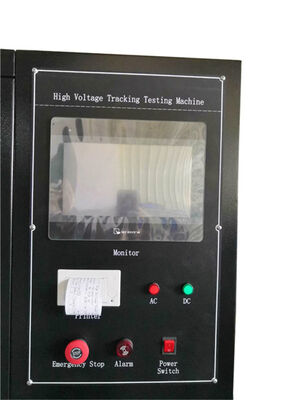

18. Control device: using Siemens PLC+Taiwan Weilun touch screen control, precise control, simple operation, fully humanized design, automatic report generation after the test, panel thermal printer can print test results in a timely manner;
19. Number of experimental groups: Five groups, (during the experimental process, one pump controls one group of droplets, which does not affect each other during the testing process, and is not commonly seen in the market where one pump controls five groups) (can be tested independently or together).
