ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V
ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V

Large Image :  ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: IEC60587-2007, ASTM D2303
Model Number: DX8427
Document: DX8427 Electrical Insulatin...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 5-8 Work Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 5 Sets per Month
Contact Now

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V

Description
Standard: IEC60587-2007, ASTM D2303 Test Voltage: AC 0-6000V / DC 0-8400V Adjustable
Test Voltage Power: 6000W Drop Height: 30mm-40mm Adjustable
Electrode Pressure: 1.00N±0.05N Electrode Gap: 50.0mm±0.1
Liquid Flow Range: 0.0016-1.5ml/min Chamber Volume: ≥ 0.5 M³
Dimensions: 1500L*1050W*2000H (mm) Warranty: 12 Months
Application: Insulator Tracking And Erosion Test
Highlight:

ASTM D2303 insulator testing equipment

,

high voltage tracking index tester

,

insulation testing machine 100-8000V

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester

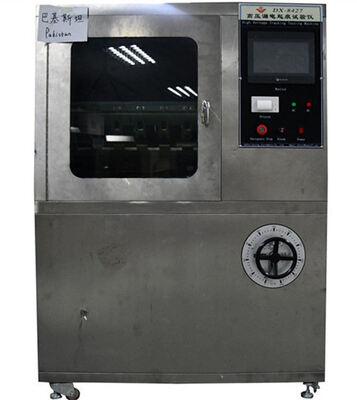

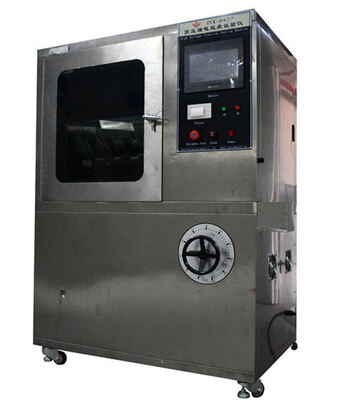

The DX8427 High Voltage Tracking Index Tester is designed to fully comply with IEC60587-2007 and ASTM D2303 standards, used to evaluate the resistance of insulating materials and insulators to tracking and erosion under high voltage and contaminant conditions.

Key Features

  • Full Standards Compliance: IEC60587-2007 & ASTM D2303 high voltage tracking and erosion test.
  • Wide Voltage Range: AC 0-6000V and DC 0-8400V stepless adjustable test voltage.
  • Precise Drip Control: Liquid flow range 0.0016-1.5ml/min with 0.5% dropping precision.
  • Adjustable Drop Height: 30mm-40mm adjustable drop height with 1.00N±0.05N electrode pressure.
  • Safety Protection: Automatically stops dropping liquid and cuts off voltage when loop current exceeds 60mA.
  • Stainless Steel Electrodes: 0.5mm thick stainless steel electrodes with 50.0mm±0.1 gap.

Technical Specifications

Parameter Specification
Standard IEC60587-2007, ASTM D2303
Test Voltage AC 0-6000V / DC 0-8400V adjustable
Test Voltage Power 6000W
Drop Height 30mm-40mm adjustable
Electrode Pressure 1.00N±0.05N
Electrode Gap 50.0mm±0.1
Liquid Flow Range 0.0016-1.5ml/min
Chamber Volume ≥ 0.5 m³
Dimensions 1500L*1050W*2000H (mm)
Warranty 12 Months

Applications

Ideal for insulator manufacturers, cable and electrical material producers, and third-party laboratories performing high voltage tracking and erosion resistance tests on insulating materials, silicone rubber and polymeric insulators.

ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V


ASTM D2303 Insulator Testing Equipment High Voltage Tracking Index Tester DX8427 100-8000V
