Product Details:
|
| Type: | Testing Machine | Accuracy Class: | High Accuracy |
|---|---|---|---|
| Accuracy: | ±0.5% | Application: | Laboratory Testing |
| Customized Support: | OEM, ODM, OBM | Power: | 45KW |
| Protection Class: | Ip67 | Voltage: | 380 V, 380V |
| Warranty: | 1 Year | Model: | DX8428 |
| Brand: | DAXIAN | Standard: | IEC62730-2024 , IEC 62217-2012 |

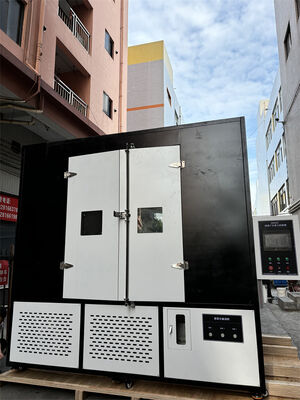

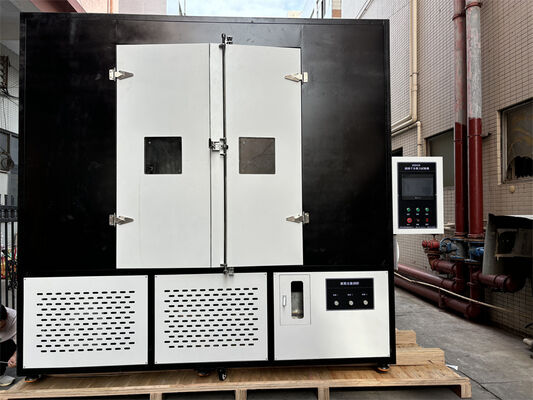

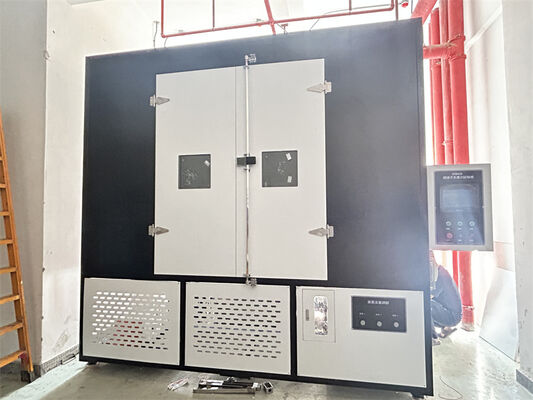

| Product Name: | Insulator Multi Stress Testing Machine 5000h Test | Keyword: | 5000h Test, Insulator Tester |
| Weight: | 2t | Packing: | Wooden Packing |
| Highlight: | 33KV Insulator Ageing Chamber,Multi Stress Testing Insulator Chamber,33KV Polymeric Insulators Testing Machine |
||
simulate the comprehensive performance test of insulators under complex working conditions
Compliant with standards: In this document, the technical requirements of the 5000h multiple stress test bench are given according to IEC 62730:2024.
Technical parameters:
1.The test cabin interior coating will be made of corrosion-resistant stainless steel (306 or 315).
2. Coating can be applied against salt fog and corrosion. The corrosion-resistant material will be made of a single piece as much as possible on each wall that will not be attached.
3.The cabin interior dimensions will be 2.7x3.0x2.4m (Total volume 18.63m3)

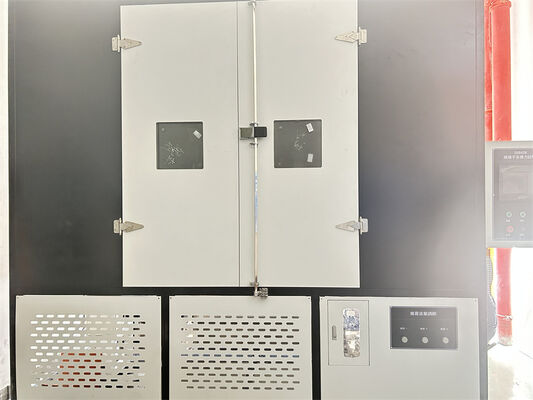

4. There will be a window equipped with radiation-blocking glass on the door.
5. The distance between the test samples and the xenon lamp will be 1m,The wall thickness will be min. 10cm and the inside will be covered with heat insulation material.
Dongguan Daxian Automation Equipment Co., Ltd., established in 2012, specializes in manufacturing testing equipment, including IEC62730-2024 standard insulator multi-stress testing machines. 5000h testing, meeting IEC 62730-2024 and IEC 62217-2012 standards.
