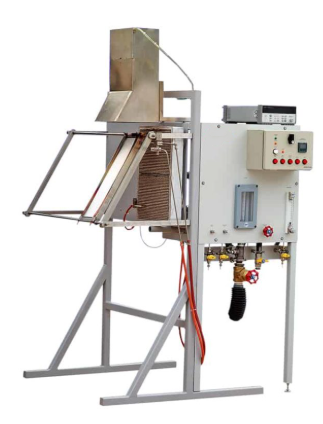

ASTME162 Standard Fire Lab Testing Machine Radiant Heat Energy Source Surface Flammability Tester

ASTME162 Standard Radiant Heat Energy Source Surface Flammability Tester

Introduction:

Standards:

• ASTM E 162: Standard Test Method for Surface Flammability of Materials Using a Radiant Heat Energy Source
• ASTM D 3675: Standard Test Method for Surface Burning Characteristics of Flexible Porous Materials Using a Radiant Heat Source

Structural Features:

• The frame structure is made of stainless steel, offering an aesthetic appearance and corrosion resistance.
• A fan with a filter assembly supplies air to the radiant panel.
• The equipment is equipped with an igniter, electronic ignition device, and automatic flame safety monitoring system.
• A stainless steel specimen rack with observation points spaced every 3 inches, allowing monitoring of the flame front progression.
• Stainless steel specimen clamping device and igniter assembly.
• Flowmeters and gas control valves deliver the gas mixture to the radiant panel.
• A detachable stainless steel exhaust pipe for easy cleaning, fitted with a thermocouple and secured by fixing brackets.
• 8 standard-compliant thermocouples.
• The calibration burner features 1.8 mm holes at 16 different angular positions, aligned along the centerline.
• A DAQ (Data Acquisition) system enables automatic control and measurement.
• Gas safety control and shut-off device.

Control System:

1. Independent electrical control cabinet.
2. Intelligent test system for simple and convenient operation.
3. Imported gas flowmeters for precise gas flow control.
4. Automatic experimental data saving, with free printing functionality.
5. Equipped with a well-known brand laptop.
