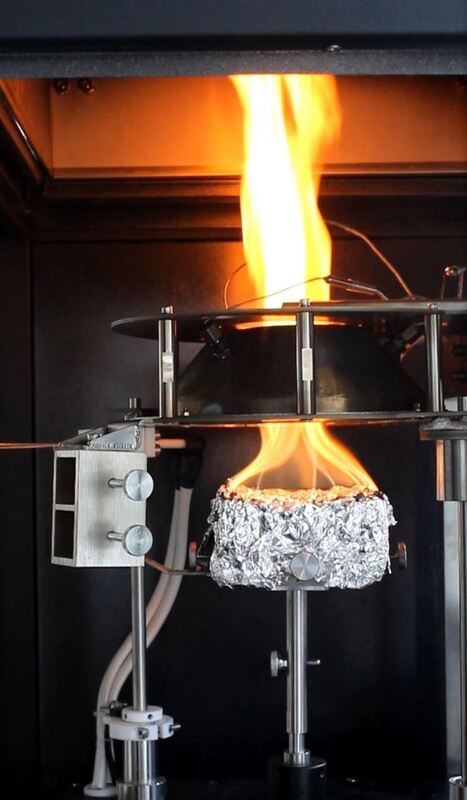

DX8378 Flame-retardant Wood Combustion Test Device (Fire Tube Method)

 DX8378 Flame-retardant Wood Combustion Test Device (Fire Tube Method)

Features & Scope

DX8378A is a professional testing instrument designed for determining the combustion performance of flame-retardant wood, solid wood panels, engineered wood, decorative wood-based materials, and other similar combustible building materials. It is widely used in quality inspection institutions, wood processing enterprises, fire research laboratories, building material certification bodies, and scientific research units. The device fully complies with relevant national and industrial fire testing standards, providing reliable data support for combustion resistance evaluation, flame retardant effect verification, product quality control, and safety certification of wood materials. It supports the measurement of multiple key combustion indicators including ignition time, flame spread rate, smoldering time, carbonization length, heat release characteristics, and combustion durability, making it suitable for both routine factory inspection and authoritative laboratory testing.

Technical Parameters

1. Power Supply: AC 220V ± 10%, 50Hz, ensuring stable and safe operation under conventional laboratory power conditions.
2. Combustion Gas: Uses liquefied petroleum gas (LPG) or propane, equipped with precise pressure regulation and flow control components to maintain consistent flame intensity.
3. Flame Temperature: Adjustable within a range of 800–1000°C, with real-time temperature monitoring and digital display for accurate control.
4. Test Time Control: Programmable timing system with a range of 0–9999 seconds, supporting automatic timing, automatic shutdown, and data retention functions.
5. Specimen Holder: Stainless steel structure with standard specimen dimensions of 150mm × 100mm × (thickness according to standard), capable of fixing samples firmly to avoid displacement during testing.
6. Flame Height: Adjustable from 20mm to 100mm, calibrated according to standard requirements to ensure test consistency and repeatability.
7. Dimensions & Weight: Compact and rational structure design, suitable for laboratory placement; lightweight yet durable, with strong overall stability.
8. Safety Protection: Equipped with over-temperature protection, gas leakage detection, automatic flameout protection, and exhaust system to ensure operator safety and environmental compliance.

Operating Instructions

1. Preparation Before Test: Place the device on a stable, heat-resistant workbench, connect the gas source and power supply correctly, check for air leakage, and ensure the exhaust system is functioning normally.
2. Sample Preparation: Cut the wood sample to standard dimensions, keep its surface clean and dry, and record material information such as wood type, thickness, and flame retardant treatment method.
3. Sample Installation: Fix the sample firmly on the dedicated holder, adjust its position to ensure the flame acts vertically on the specified test area accurately.
4. Parameter Setting: Set target flame temperature, test duration, flame height, and other parameters through the control panel according to standard requirements.
5. Ignition & Testing: Ignite the burner, preheat to the set temperature, start the timing system, and apply the flame to the sample surface as required. Observe and record combustion phenomena in real time.
6. Data Recording: After the test, automatically record or manually document carbonization length, ignition time, flame spread speed, afterflame time, and smoldering time.
7. Post-Test Operation: Extinguish the flame naturally, turn off the gas source and power supply, cool the device completely, clean the combustion chamber and test area, and remove residual samples.

Product Characteristics

1. High Precision & Stability: Adopts precise gas flow control and temperature sensing systems, ensuring small test errors and high result repeatability, meeting strict standard testing requirements.
2. User-Friendly Operation: Equipped with a digital control panel and intuitive interface, enabling simple parameter setting, one-key start, and automatic test execution, reducing manual operation complexity.
3. Strong Standard Adaptability: Designed in accordance with mainstream combustion test standards for wood and building materials, suitable for various types of flame-retardant performance tests and compatible with multiple testing modes.
4. Comprehensive Safety Design: Multiple safety protection functions effectively prevent risks such as gas leakage, over-temperature combustion, and accidental ignition, ensuring safe operation in long-term testing.
5. Sturdy & Durable Structure: Made of high-temperature-resistant stainless steel and heat-insulating materials, resistant to deformation and corrosion, extending service life and reducing maintenance frequency.
6. Environmental & Practical: Equipped with an independent smoke exhaust system to reduce smoke pollution, with a compact layout that saves laboratory space while maintaining strong functionality.
7. Data Traceability: Supports real-time data display and storage, facilitating data query, comparison, and test report generation, improving efficiency in quality analysis and certification
