100KV IEC 60243 Insulating Material Electrical Strength Testing Equipment Lab Test Machine

Large Image : 100KV IEC 60243 Insulating Material Electrical Strength Testing Equipment Lab Test Machine

Product Details:

Place of Origin:	China
Brand Name:	DAXIAN
Certification:	IEC60243-1, IEC60243-2, ASTM D149
Model Number:	DX8388A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case
Delivery Time:	30 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	30 sets per month

Contact Now

100KV IEC 60243 Insulating Material Electrical Strength Testing Equipment Lab Test Machine

Description

Applicable:	Insulating Materials	Breakdown Voltage:	0~100kV
Booting Speed:	100, 200, 500, 1000, 2000, 5000（KV/S）	Accuracy:	≤ 2％
Methods Of Test:	DC & AC	Weight:	200kg
Dimension:	L1400* W1040* H1500 Mm	Transformer Capacity:	10 KVA
Highlight:	100KV insulating material tester , IEC 60243 electrical strength testing machine , lab test equipment for rubber insulation

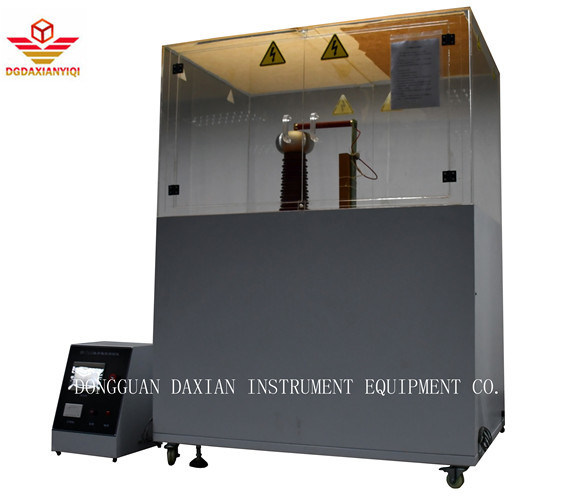

100KV Electrical Strength of Insulating Materials Testing Equipment IEC 60243

Application:

This tester is suitable for measuring the breakdown strength and withstand voltage time of solid insulating materials such as plastic, film, resin, mica, ceramics, silica gel, glass, insulating paint, etc. in air or liquid medium, it can measure the breakdown strength and withstand voltage time under power frequency (48 ~ 62Hz) or corresponding DC voltage.

Standards:

IEC60243-1

IEC60243-2

Specifications:

Breakdown voltage	0~50kV
Booting speed	100,200,500,1000,2000,5000(KV/S)
Voltage measurement accuracy	≤ 2％
The leakage current selection	1~100 mA
Methods of test	DC & AC
Supply power	AC220V 50/60Hz
Dimension	L 1400* W 1040* H 1500 mm
Weight	200kg

1. Booting speed control: Electrical automatic control

2. Methods of booting: Automatic program-controlled

3. Power Frequency: sine wave 50Hz/60HZ

4. Transformer capacity: 10 KVA

5. AC 0~50 KV (continuously adjustable)
