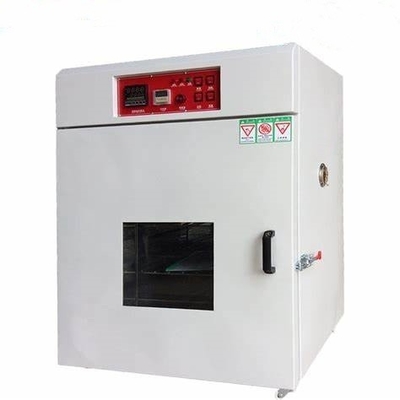

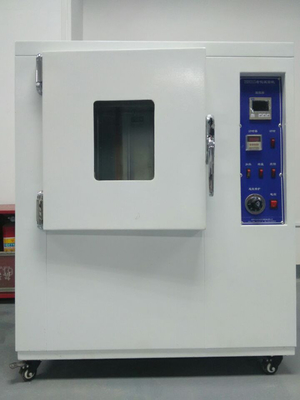

DX8316 Breathable Aging Testing Equipment
Uses:
This machine is suitable for wires, leathers, plastics, rubbers, cloths, and the change characteristics before and after heating. In order to maintain fresh air in the box when the wire is heated, the air exchange volume is specially adjusted. This testing machine is equipped with a precision-designed air displacement adjustment device and a digital voltmeter, galvanometer, watt-hour meter and timer, which can be used as a measurement of air displacement rate. The horizontal forced air supply circulation system and the internal airflow adjustment plates on both sides ensure that the internal temperature of the testing machine is uniform and stable.
Executive standard:
It meets the requirements of UL1581sect420.9, ASTM-D2436, CNS3556, CNS742, JIS7212, JISB7757, GB, VDE test standards.
Conditions of use:
Power supply: three-phase four-wire 380V AC 50Hz
Ambient temperature: 5~35°C
Ambient humidity: ≤85%R.H
Performance indicators:
Power supply: AC380V three-phase four-wire system
Power: 6.0KW
Temperature range: room temperature +10°C~300°C
Control accuracy: ±0.5°C
Resolution accuracy: 0.1°C
Distribution error: ±2.5°C
Heating time: from room temperature to 300°C, about 40 minutes.
Inner box material: SUS#304 stainless steel, outer box: baking paint.
Insulation material: 80mm thick high-density rock wool.
Heater: a set of solenoid heater: 380V 6.0KW
Machine structure and material:
Inner box size: 50 cm (L) x 40 cm (D) x 50 cm (H)
Carton size: 120cm (L) x 65 cm (D) x 134 cm (H)
The box is a five-layer structure: an outer layer of electrostatic baked painted steel plate, and a second layer of heat-insulated high-density rock wool.

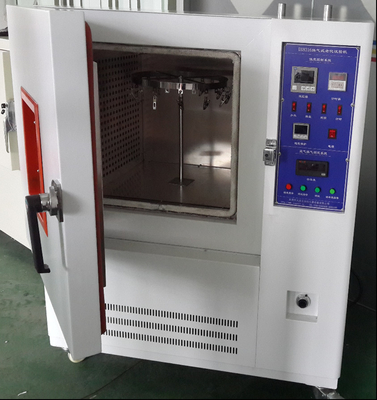

A set of rotary disc and rotary motor. (Rotary disc detachable, speed 8~10rpm)
The third layer is a high-temperature resistant electrolytic plate, a four-layer air ventilation layer and a heating pipe layer, and the fifth layer is a stainless steel plate.
A set of air exchange size adjustment device. The air exchange volume is adjustable for 5 times ~ 300 times/hour, and it is measured at 80°C.
