Product Details:
|
| Equipment Name: | Material Smoke Toxicity Hazard Classification Tester | Standard: | ISO13344 |
|---|---|---|---|
| Power Supply Voltage: | AC220V ± 10% | Maximum Power: | 1.5KW |
| Air Flow: | 0-20L/min Adjustable | Warranty: | 12 Months |
| High Light: | 1.5KW Flammability Test Chamber,Hazard Classification Flammability Test Chamber,Toxicity Classification Fire Test Chamber |
||

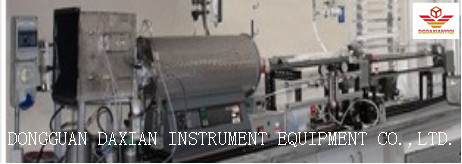

Material Smoke Toxicity Hazard Classification Tester ISO13344
1, Scope of application:
The test equipment is applicable to the classification of smoke toxicity hazard for stable smoke production of materials.
In ISO13344 standard, gas analyzer is used to determine the smoke toxicity hazard classification of material smoke.
2, Standard:
ISO13344.
3, Main performance indicators:
| Power supply voltage | AC220V ± 10% 50HZ, current ≤ 10A |
| Maximum power | 1.5KW |
| Heating power | 800-1000W |
| Temperature control range | 300-1000 ℃ |
| Control accuracy | static ± 1 ℃ (holding time greater than 2min) |
| Air flow | 0-20L/min, adjustable |
Displacement rate of annular furnace: (10 ± 0.1) mm/min;
Microcomputer control and computer operation;
Annular furnace heating temperature calibration: display time, temperature curve and actual measured temperature comparison chart.
