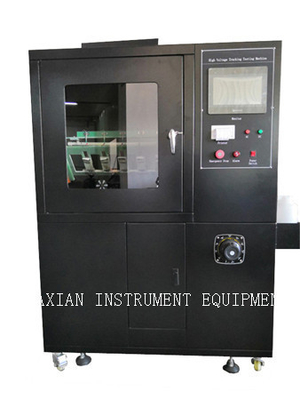

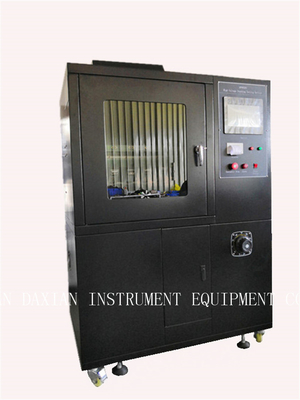

IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage

IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage
IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage
IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage

Large Image :  IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: IEC60587, ASTMD2303
Model Number: DX8427
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: wooden cases
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets every month

IEC60587 Tracking Erosion Testing Machine Electric Mark Index Tester High Voltage

Description
Product Name: Tracking Erosion Machine Standard: IEC60587, ASTMD2303
High Light:

IEC60587 Erosion Testing Machine

,

Tracking Erosion Testing Machine

,

Erosion Testing Machine High Voltage

IEC60587 Tracking Erosion Machine Electric Mark Index Tester High Voltage



Tracking Erosion Machine





1. Remark :



Simulating works under the power frequency (VAC) (48 HZ---62HZ) or under the corresponding DC Voltage(VAC), the DC-AC high voltage tracking testing machine applys to test the tracking resistance and deterioration of the electronic products, domestic appliance and its materials.



2. Standard :



Testing apparatus for IEC60587-2007 electrical insulating materials used under severe ambient conditions- test methods for evaluating resistance to tracking and erosion, ASTM D2303.



3. Parameters :



Instrument Dimensions:

- 890L * 1320W * 1900H (mm);

Operationg Room Size:

- 1100L*900W*950H (mm);

Electrode:

- thickness: 0.5mm; material: stainless steel;

Gape of Electrade:

- 50.0mm±0.1;

Testing Voltage:

- AC: 0V-6000V no rate adjustable;

- DC: 0V-8000V no rate adjustable;

Testing Voltage power:

- 6000W;

Liquid Flow Range:

- 0.0016-1.0ml/min optional setting;

Dropping liquid Precision:

- 0.5%;

Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;

Testing time:

- 0-10 hours, setting freely;

Tracking Judgment:

- Voltage 6000V, current below 60mA continue 6 hours.
