​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test

​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test
​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test
​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test ​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test ​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test ​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test ​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test

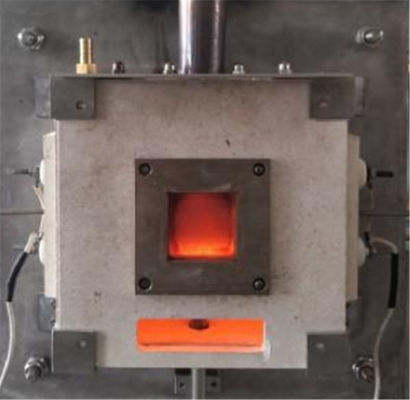

Large Image :  ​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: BS 476-6
Model Number: DX 8298
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Money Gram, In cash
Supply Ability: 15 sets per month
Contact Now

​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test

Description
Standard: BS 476-6 Product Name: BS476-6 Fire Propagation Tests On Building Materials And Structures
Test Chamber Inner Dimension: 190 Mm × 190 Mm × 90 Mm Air Inlet: 96 Mm × 25 Mm
Asbestos Cement Board: 12.5 Mm Thick Warranty: 12 Months
Highlight:

​BS476-6 Fire Testing Equipment

,

Fire Testing Equipment 12 month Warranty

BS476-6 Fire Test Machine Of Products Used As Internal Linings In Buildings Flammability Test Apparatus

BS476-6 Fire propagation Tests on Building materials and structures

Scope of application:
The test device is suitable for testing the fire spread index of wall and ceiling lining and other flat materials, composite materials or components, so as to evaluate the performance of inner wall and ceiling lining.

Meet the standards:
BS 476 Part 6 .

​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test 0



1. Export to Malaysia, Switzerland
2. Test gas G112 (17% methane, 59% hydrogen, 24% nitrogen)
3. Heating element: two 1000W quartz heating tubes.



Technical parameters:

Chamber wall:


Asbestos cement board

12.5 mm thick

Dry density

1300 kg / m3 ~ 1450 kg / m3

test chamber inner dimension

190 mm × 190 mm × 90 mm

Air inlet

96 mm × 25 mm

Mica observation window

50 mm × 50 mm

Steel baffle

200 mm × 40 mm

Steel bar

fixed sample holder



​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test 1


Panel description :

(1) Gas Pressure : display the input gas pressure, unit: MPa;
(2) Wattmeter: display and measure the input voltage, current and power of the heating tube;
(3) Pressure adj.: adjust the input gas pressure, and display the pressure value through (1);
(4) Manometer: display the output gas pressure value, unit: KPa ;
(5) Alarm: when the equipment fails or the test ends, it will sound an alarm as a reminder;
(6) Power: control the general power supply of the equipment, in the open state, the indicator light is on, and the off indicator light is off.

​BS476-6 Certificate Fire Testing Equipment For Ceiling Lining Test 2



 Building Materials Fire Propagation Testing Machine
 List
ItemNameSpecificationNumber
1Combustion host350mm*350mm1
2control boxDX8298Electric control box1
3Specimen holder50mm and 12mm thickness1
3computer systemcomputer1
4testing softwareV2.191
5ThermocoupleȻ1*150,Type K3
6manual 1
7Quality Assurance 1
8Product certification 1
9lighter 1
10hair dryer 1
11Wiring board 1
