Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367

Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367
Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367 Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367 Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367

Large Image :  Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: ISO 9151,BS EN 367
Model Number: DX8613
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash
Supply Ability: 15 sets per month
Contact Now

Electronic Fire Testing Equipment ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367

Description
Power: Electronic Warranty: 1 Year
Product Namee: Protective Clothing Heat Transmission Tester Standard: ISO 9151, BS EN 367
Weight: About 25 Kg Size: 500mm(W)X 500mm(H)X 500mm(D)
Highlight:

horizontal flammability tester

,

vertical flame test chamber

ISO 9151 Protective Clothing Heat Transmission Tester BS EN 367
Product Description:

Heat transfer index is calculated from the mean time in seconds to achieve a temperature rise of 24±0.2℃ when testing by this method using a copper disc and a starting temperature of 25±5℃. The heat transfer index provides a method of grading materials which does not imply that the material tested will give any precise protective time under actual use conditions.

Application:  Safety Protection
Standards:
ISO 9151——Protective clothing against heat and flame -- Determination of heat transmission on exposure to flame
BS EN 367——Protective clothing. Protection against heat and fire. Method for determining heat transmission on exposure to flame

Features:
The apparatus is designed and manufactured according to EN 367 and ISO9151 standards.
The apparatus consists of the burner, the cover sheet and the specimen holder with copper calorimeter.
The cover sheet and the specimen holder are controlled via pneumatic transmission which is automatically controlled by software.
A horizontally oriented test specimen subjected to an incident heat flux of 80KW/m2 from the flame of a Meker burner beneath it.

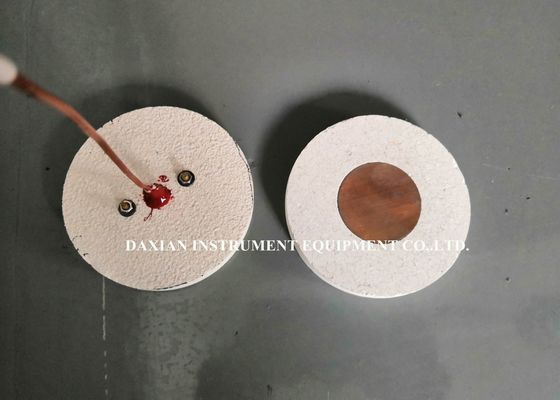

The heat passing through the specimen is measured by means of a small copper calorimeter on top of and contact with the specimen.
The time to record a temperature rise of 12 or 24℃ in the calorimeter is recorded in seconds.
The calorimeter cooling device shorten the test time.
The mean result for the three test specimens is calculated as the HTI.
The calibration of heat flow density of 80 kW/m2 is performed automatically by software.

Specification:
Size
500mm(W)X 500mm(H)X 500mm(D)
Weight
about 25 kg
Electrical
230 volts Nominal 10 Amps
Ambient Temperature
Operating 25±5℃
Gas Supplies
Propane and air compressed air
*BS EN 367 ISO 9151 Protective Clothing Heat Transmission Tester
