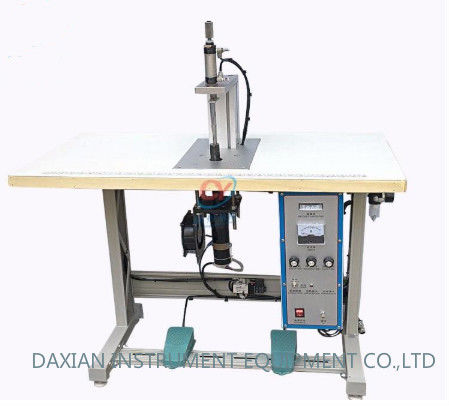

Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System

Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System
Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System

Large Image :  Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: CE
Model Number: DX8220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 30 sets per month

Air Cooling Ultrasonic Welding Device Self - Excited Oscillation System

Capability: 25 Ton Plate: 350×350mm
Working Layers: 2 Maximum Fluid Pressure: 14.5MPa
Name: Ultrasonic Welding Device Voltage: 220V
High Light:

foam compression test


shore hardness tester for rubber

Ultrasonic welding machine earband earline handheld welding


Application industry:

It can be used for spot welding of cup-shaped masks, stereo mask ear bands and webbing, Velcro, crafts, small plastic parts, etc.


Technical Parameter:
Frequency: 35KHZ
Voltage: 220V
Output power: 500W
Power consumption: 550W
Power form: Ultrasound
Control method: manual
Frequency band: high frequency
Drive form: manual
Principle of action: pulse
Welding head travel: 5mm
Welding area: 8 × 8mm
Spot welding size: diameter 1-8mm
Cooling method: air cooling
Oscillation system: self-excited
Gross weight: 30KG


1. Ultrasonic spot welding machine adopts NTK vibrator to ensure stable power and durability.
2. The use of 7075 imported aluminum alloy mold, high-quality components assembly, reliable performance, smart design of the whole machine, easy operation.
3. Central straight axis design. The transducer and the mold are in the same straight line to ensure stable output, strong and uniform power, and beautiful welding.
4. The double guide post design can solve the problem of reclining when welding.
5, high production efficiency, simple operation, the welding point after welding is firm and beautiful, without damaging the material itself.
6. Laser infrared positioning system, simple operation and accurate welding.
7. Designed for spot welding of non-woven fabrics and small plastic parts.


Working characteristics:
1. High production efficiency, good welding quality, environmental protection and energy saving.
2. Low energy consumption, no deformation, no pollution.
3. Easy operation.


Working principle:

50 / 60HZ current is converted into high-frequency alternating current by an ultrasonic generator, and the electrical energy is input to the ultrasonic transducer to generate mechanical motion with the same frequency. The welding head transmits the received vibration energy to the action area of the joint of the workpiece to be welded, and the energy is converted into thermal energy by friction to melt the plastic. The short-term pressure maintained on the workpiece after the vibration stops causes the two weldments to solidify in a molecularly linked manner. Generally the welding time is less than 1 second, and the obtained welding strength is comparable to the body.


Product advantages:

The amplitude is large at 20KHz. When the fusion surface reaches a high temperature melting point, the molecule itself is also destroyed. The 35K amplitude is small. It is used for welding high-precision products. When the temperature reaches the product welding point, the damage to the product molecules is small. It requires higher technology and better welding effect.
