ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4

ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4
ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4 ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4 ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4 ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4 ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4

Large Image :  ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: BS 476-4、EN IS01182、GB/T 5464、ASTM E136[3]
Model Number: DX8371
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 15 sets per month

ISO 1182 Micro Computer Non Combustibility Tester Electronic Power BS 476-4

Description
Standard: BS 476-4、EN IS01182、GB/T 5464、ASTM E136[3] Warranty: 12 Months
Heating Power: 800 ~ 1000W Power Supply: AC220V, 50/60Hz
Control Box: 430 (W) * 450 (D) * 300 (H) Mm Power: Electronic
High Light:

horizontal flammability tester

,

fire test chamber

EN IS01182 Micro Computer Non-Combustibility for Material  BS 476-4

Application:
When a certain amount of gas is supplied to the box and the standard ignition source is used to ignite the flame, this instrument can be used to test the ability of the vertical flame propagation to be restrained under the standard conditions of the vertically installed bundles of wire, cable or optical fiber cable.

Standards:
- BS 476-4
- EN IS01182
- GB/T 5464
- ASTM E136[3]

Main parameters:

The test equipment includes heating furnace, sample holder, air flow hood, thermocouple, power stabilizer, voltage regulator,

intelligent temperature control device, computer (temperature curve can be recorded and all test data can be recorded)

Draught shield



Φ75mm×50mm



Specimen holder mass
15±2 g



Voltage stabilizer
1.5KVA,accuracy of output voltage within ±1%



Variable transformer
0~100V



Thermometer
0~1000±5%



Environment temperature
25ºC~35ºC



Timer
0~99h



Power
AC220V ± 10%, 50Hz, current ≤10A

Furnace temperature
750±5ºC

Furnace temperature drift
<2ºC/10min

Heating power
800-1000W, maximum power:1.5KW

The bulk density of the Magnesium Oxide Powder
(170±30)kg/m³

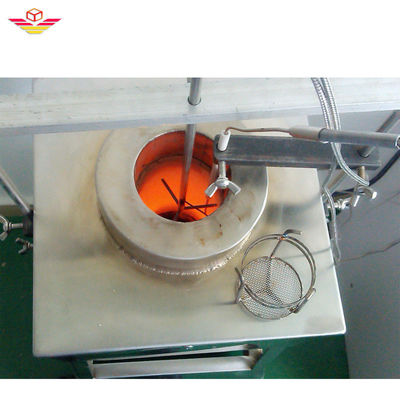

Furnace
-Φ95mm×Φ75mm×Φ150mm,80/20 nickel/chromium electrical resistance tape 3mm wide and 0.2mm thick.

Thermocouple
-insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm
-We can provide two free thermocouples, you can also purchase extra spare parts if you need them later.


Mirror
- equipped with mirror to see the interal of the furnace
- a mirror 300mm square, at an angle of 30° to the horizontal

Equipment structure:

-The machine is composed of heating furnace, control box, computer and air current stabilizer.

-Combustion chamber size: L700*W400*H850 (mm).

-The combustion box and control box are made of high quality SUS304 stainless steel.The internal parts are made of SUS304 stainless steel and are well rustproof.

-The equipment adopts industrial computer and 16-bit high-precision AD acquisition card, and the data collection is completely processed by computer.

-The experimenter can see the test data and temperature curve in real time.The test report is automatically generated after the test is finished, which is convenient for operators to save and print and transmit.

- a specimen holder and insertion device.

- a tubular electric furnace comprising a tube of refractory material.
