|Product Type:||Flammability Testing Equipment||Standard:||IEC60587-2007, ASTM D2303|
|Power Supply:||AC 220V 50Hz||Name:||High Voltage Tracking Index Flammability Tester|
|Drop Size:||44 To 50 Drops / Cm3||Electrode Pressure:||1.00N±0.05N|
horizontal flammability tester,
vertical flame test chamber,
IEC60598 High Voltage Tracking

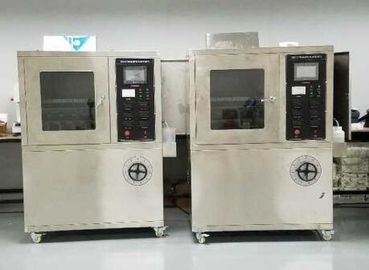

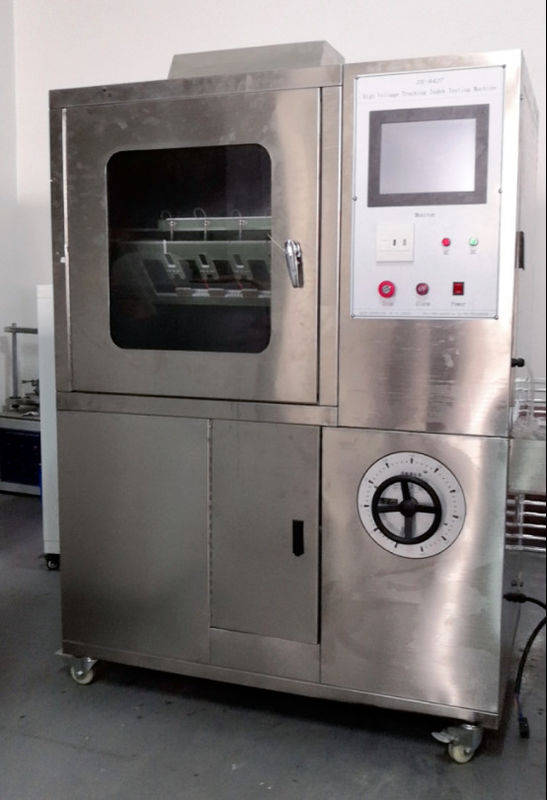

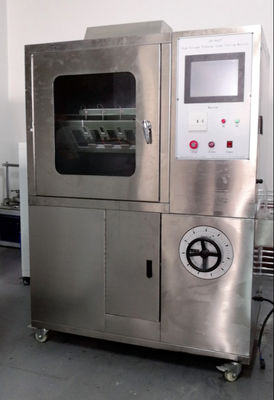

IEC60587 6 KV Automatic High Voltage Tracking Index Tester
This product is used in electrical products under the influence of moisture and impurity environment, between the different polarity of the live parts or between the live parts and the grounding metal parts may cause insulation on the leakage, the resulting arc caused by electrical breakdown of the electrical or due to Discharge causes the material to erode and even ignite the fire. The test apparatus is a destructive test of the insulating material in the above case to test and evaluate the relative resistance to traceability of the insulator in the presence of electric and impurity water at a specified voltage. Applicable to electrical and electronic products, household appliances, solid electrical insulation materials and their products, such as: relay socket, switch cover, contactor body.
IEC60587-2007, ASTM D2303
|Box||≥ 0.5 cubic meters|
|Drop size||44 to 50 drops / cm3|
|Power supply||AC 220V, 50Hz|
|Electrical load||0 ~ 6000V adjustable|
|Drip height||30mm ~ 40mm adjustable|
|Flow range||0.00185 to 2 ml / min|
|Speed||0.1 to 15 rev / min|
1.Professional technology support,Independent R&D and manufacturing, a number of patents, manufacturers direct sales.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products.
6.In-time after-sale service.
7. 95% of the products are exported to foreign countries.
8. 90% of our customers think our service is "excellent".
Contact Person: Sophia Su
