Product Details:
|
Material: | Stainless Steel | Power Supply: | 220V 50HZ |
---|---|---|---|
Product Name: | Fire Testing Equipment | Usage: | SPI Flammability Tester |
Weight: | 30 Kg | Dimension: | 500 X 450 X 650 Mm |
Highlight: | horizontal flammability tester,vertical flame test chamber |

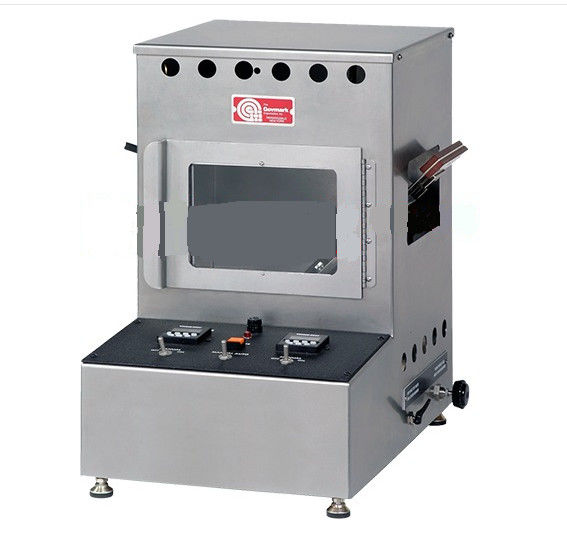

Flammability of Vinyl Plastic Film Testing Machine for CFR 16 Part 1611
Application:
SPI Flammability Tester, to determine the ignition properties of vinyl plastic film material according to CFR 16 Part 1611 - U.S.A. Flammable Fabrics Act for flammability of apparel vinyl plastic film.
This product is manufactured according to Flammable Fabric Acts (FFA), which is a mandatory testing terms proposed by U.S. Consumer Product Safety Commission (CPSC).
This tester is used to evaluate compliance the ignition resistance properties of vinyl plastic film. The material covered is non-rigid, un-supported, vinyl plastic film, including transparent, translucent, and opaque material, whether plain, embossed, molded or otherwise surface treated.
Standards: CFR 16 Part 1611
Feature:
l Stainless steel test cabinet, equipped with transparent viewing window;
l 22# needle flame, flame length adjustable;
l Inching-controlled mode switch;
l Record burning time and burning rate automatically;
l Timer accuracy up to 0.01 second;
l Provide with a stainless steel specimen holders
Included Accessories:
1. 1 set of main machine. Completed with cabinet, flow-meter, timer, transparent viewing window, etc.
2. 1 set of sample holder
3. 20 White cotton threads
4. 1 Sample cutting template
5. 5 22# Fire nozzles
