|Standards:||GB8410, FMVSS571.302, DIN7520||Control Box Size:||300mm (length) * 270mm (width) * 360m (high)|
|Steel Ruler:||Length 400mm, Precision 1.0mm||Flame Height:||38mm|
horizontal flammability tester,
fire test chamber

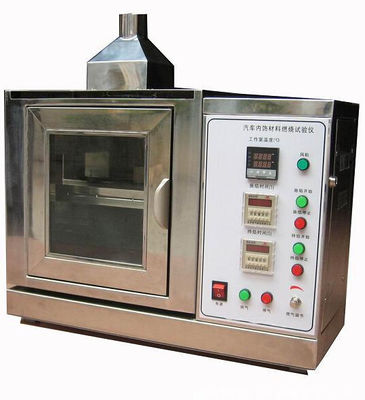

DIN7520 Automotive Interior Material Combustion Fire Resistance Testing Equipment
Conforms to GB8410, American Standard FMVSS571.302, DIN7520 "Combustion Characteristics of Automotive Interior Materials".
The sample is horizontally clamped on a U-shaped bracket. After the free end 15S of the sample is ignited in the combustion box with a prescribed height of flame, it is determined whether the flame on the sample is extinguished, and the distance the sample burns and the distance to burn The time used.
Mainly applicable to single materials or laminated composite materials used in automotive interior material parts, such as seat cushions, seat backs, seat covers, seat belts, head restraints, armrests, movable folding roofs, all decorative Liners, dashboards, glove compartments, interior cargo racks, or rear window sills, curtains, floor coverings.....
Combustion box: mirror stainless steel structure, plate thickness 1.2mm
Control box size: 300mm (length) * 270mm (width) * 360m (high)
Combustion chamber size: width x height x depth: 385x 360x 204mm
There are 10 ventilation holes with a diameter of 19mm at the bottom and four walls with a 13mm wide ventilation slot near the top.
Test stand: Made of two U-shaped corrosion-resistant metal plates, measuring length x width 361x100mm
Control box: Burning time: 0~99.99/S/M/H set arbitrarily
Burning time: 0~99.99/S/M/H set arbitrarily
Shutdown time: 0~99.99/S/M/H set arbitrarily
Burning light: nozzle diameter: 9.5mm
Air source: gas (customer-supplied)
Flame height: 38mm
Metal comb length: 110mm, 7~8 smooth round teeth per 25mm
Steel ruler: length 400mm, precision 1.0mm
