Product Details:
|
| Application: | Rubber, Wire And Cable, Aluminum Products | Standards: | ASTM D792, ASTM D297 |
|---|---|---|---|
| Dimensions: | 270*270*270mm | Weight: | 6.5kg |
| High Light: | rockwell hardness test,shore hardness tester for rubber |
||

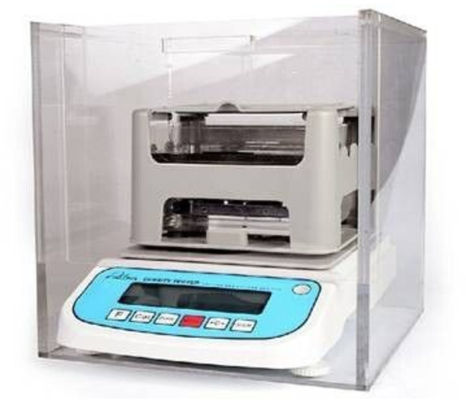

Specific Gravity Tester Densimeter Electronic Density Tester for Rubber Plastic Products
Application:
Rubber, wire and cable, aluminum products, fiber, powder metallurgy, mineral rock, precision ceramics, glass industry, metal products, precision ceramics, refractories, magnetic materials, alloy materials, mechanical parts, metal recycling, minerals and rocks , cement manufacturing, jewelry industry and other new material research laboratories.
Meet the standards: ASTM D792, ASTM D297, GB/T1033, GB/T2951, JISK6268, IS02781, IS01183... and other standard specifications.
Principle: Using the Archimedes principle buoyancy method, accurate, direct reading measurement values.
Functional features and devices:
Gold-plated ceramic capacitance sensor
With the density of the test device, can achieve liquid, solid density test
Density reads directly, minus the cumbersome calculations
Standard RS232 data output function for easy connection of PCs and printers
Automatic zero tracking, buzzer alarm, overload alarm function
The air quality of the measured object: ≥0.25g
Buoyant force in the air of the test object: <-0.125
Dimensions, 270*270*270mm; Weight: 6.5kg
One-piece sink size, 165*115m 85mm
Blue backlit LCD display
Technical parameters:
| Test species | Solid, floating body, particle |
| Density resolution | 0.001g |
| Accuracy | 0.001g/cm3 |
| Weight range | 0.01g~200g |
| Test time | 10s |
| Power supply | 110V 60Hz or 220V 50Hz |
