Product Details:
|
Features: | LCD Touching Screen Display | Standards: | ASTM D256,JIS-K7110,ISO-180 |
---|---|---|---|
Capacity: | 2.75J/5.5J | Impact Speed: | 3.4m/sec(11ft/sec) |
Test Angle: | 150° | Pendulum Length: | 330mm |
Highlight: | foam compression test,shore hardness tester for rubber |

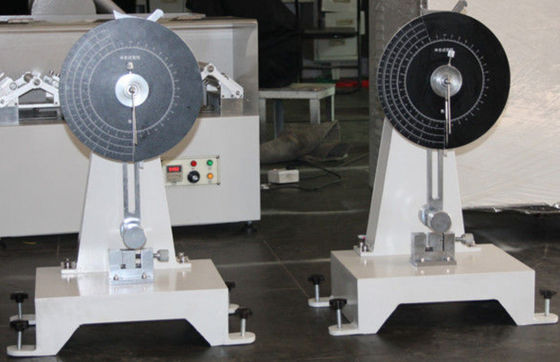

ASTM D256 Charpy Pendulum Impact Tester Testing Machine for Plastic and Steel Products
Product Description:
Pendulum Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Design criteria:
ASTM D256,JIS-K7110,ISO-180,GB/T21189-2007
Features:
1. Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box
2. Safety pin guaranties the impact action, standard protection shell to avoid any accident
3. Pendulum will automatically rising and ready for next impact action after specimen breakout
4. with two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well
5. Built-in micro printer to print test result
Specifications:
Capacity | 2.75J/5.5J |
Impact Speed | 3.4m/sec(11ft/sec) |
Test Angle | 150° |
Pendulum length | 330mm |
Specimen size(L×W×H) | 10×10×55mm3 |
Dimension(W×D×H) | 52×30×72cm3 |
Weight | 55kg |
