Vertical Single Cable Burning Fire Resistance Test Equipment , Wire Cable Testing Machine
Scope of application:
Applicable to the flame retardation test of a single wire or cable or fiber cable under the specified flame conditions. At the same time, it can be used to test the burning of drip objects under flame conditions.
Comply with the standards: in line with GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3: 2004 meets the test standard requirements of GB/T18380.21-2008, GB/T18380.22-2008, IEC60332-2-1:2004, IEC60332-2-2:2004, NE 50086-1-1994.
The main parameters:

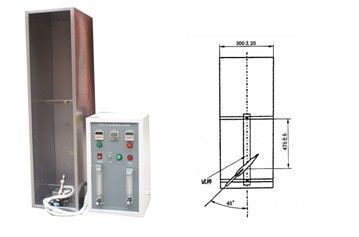

1. Metal cover: all stainless steel box, internal cavity high 1200mm, width 300mm, deep 450mm, the front is open, the top and bottom closed.
2. Blow torch: GB/T18380.11-2008, GB/T18380.12-2008, GB/T18380.13-2008, IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3: 2004 uses a torch with a nominal power of 1kw. Meet the GB/T5169-14 standard. GB/T18380.21-2008, GB/T18380.22-2008, IEC60332-2-1:2004, IEC60332-2-2:2004 use propane torches (diffusion flame).
3. Set the burning time reaches the preset time, the machine will automatically stop the ignition.
4. Igniter: automatic high voltage ignition.
5. Fuel: gas methane, purity 95% (user-supplied)
6. Air flow meter: 10L/min, gas flowmeter 650mL/min one each
7. A set of temperature measuring device
