Product Details:
|
Standards: | IS01182:2002, GB/T5464-2010 | Air Hood: | D75mmx500mm |
---|---|---|---|
Thermometer: | 0-1000±2% | Furnace Temperature: | 750±5°C |
Equipment Weight: | 60kg | Equipment Dimensions: | Length X Width X Height (500 X 500 X 1.5) Mm |
Highlight: | vertical flame test chamber,fire test chamber |

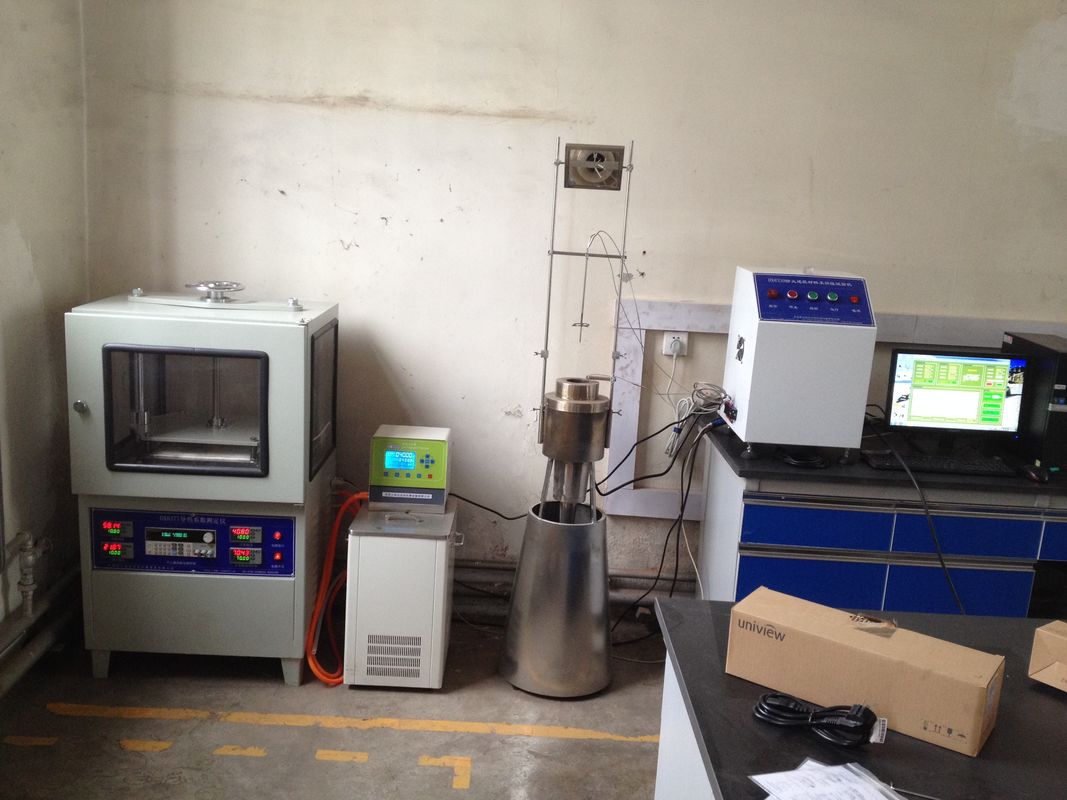

Fire Resistance Testing Equipment for Non-Flammable Building Materials
Application:
Applicable to tests for determining whether a building material is nonflammable under specified conditions
Meet the standards:
GB/T5464-2010 "Test method for incombustibility of building materials", IS01182:2002 "Inflammability test of building materials against fire test"
Main parameters:
Test equipment includes heating furnace, sample holder, airflow hood, thermocouple, power regulator, pressure regulator, intelligent temperature control device, computer (recordable temperature curve and test all data)
Heating furnace; Φ95mm×Φ75mnmn×150mm, 3mmx0.2m nickel 80% chromium 20% resistance band
Test product quality: 15g+19
Air hood: d75mmx500mm
Thermocouple: Insulated Nichrome Armor Φ3mm
Regulator: 2KVA, voltage stability ≤ earth 1%
Thermometer: 0-1000±2%
Timing time range: 0a99h accuracy ±1S
Power supply voltage: AC220v ± 10%, 50Hz, current ≤ 10A Stable time: from room temperature to 750 °C ≤ 1h;
Furnace temperature: 750±5°C
Furnace temperature drift: 2°C/10min
Heating power: 800~1000W
Maximum power: 1.5Kw
Power heating voltage; 0~100V adjustable
Equipment structure:
The machine consists of a heating furnace, a control box, a computer, and three parts
Computer control and data processing, automatic and accurate recording of standards, formatted print test results;
Equipment dimensions; length x width height (500 x 500 x 1.5) mm
Equipment weight: 60kg
