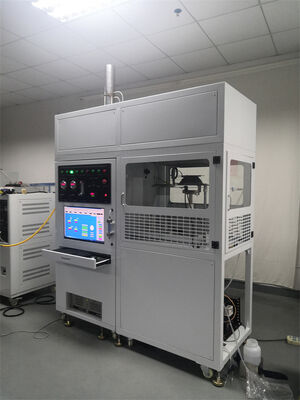

ISO 5660-1 Cone Calorimeter Heat Release Rate Testing Machine DX8348A for Fire Test Lab

The DX8348A Cone Calorimeter is a bench-scale fire testing instrument used to evaluate the heat release rate, mass loss rate and ignition behavior of materials under controlled radiant heat exposure. It is designed and manufactured in full compliance with ISO 5660-1 and ASTM E1354 standards, making it an essential tool for fire safety research and flame retardant material development.

Key Features

• Oxygen consumption calorimetry principle delivers accurate heat release rate measurement
• Adjustable external heat flux up to 100 kW/m2 with precise radiant cone control
• Integrated mass loss, smoke density and ignition time data acquisition
• Industrial PLC control with touch screen operation and automated calibration
• Complies with ISO 5660-1, ASTM E1354 and GB/T 16172 test requirements

Technical Specifications

• Model: DX8348A
• Test Standard: ISO 5660-1 / ASTM E1354 / GB/T 16172
• Heat Flux Range: 0-100 kW/m2
• Specimen Size: 100 x 100 mm
• Exhaust Flow Rate: 0-50 L/s
• Oxygen Analyzer: Paramagnetic type, 0-25%
• Power Supply: AC 220V 50Hz

Contact our sales team for the DX8348A cone calorimeter price, lead time and customized configuration.
