DX8368 Plastic Smoke Density Tester ISO 5659-2 GB/T 8323 Single Chamber 10-50kW/m2 Radiant Cone Heat Flux

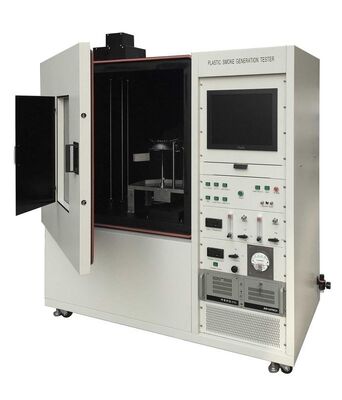

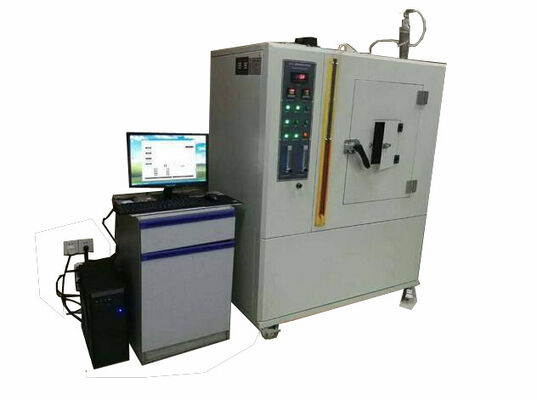

DX8368 Plastic Smoke Density Tester

The DX8368 plastic smoke density tester is a single-chamber smoke density measuring instrument developed in strict accordance with GB/T 8323.2-2008 and ISO 5659-2:2006 standards. It is designed to determine the specific optical density of smoke generated by plastics and other solid materials during combustion, with the maximum specific optical density (Ds max) as the test result.

Application Scope

Suitable for evaluating the smoke generation performance of all plastics, rubber, textile coverings, painted surfaces, wood and other materials. Widely used by plastic and solid material manufacturers and scientific research laboratories.

Key Features

• Single Chamber Design: Closed test chamber with inner dimensions 914mm x 914mm x 610mm, three-layer construction with 1.2mm USU304 stainless steel inner layer for easy cleaning
• High Precision Photometric System: Photomultiplier tube detector with 6.5V incandescent light source, 0.0001% light transmittance resolution, 0-100% measurement range with automatic range switching, accuracy ±3%
• Radiant Cone Heater: 2600W heating element providing 10kW/m2 to 50kW/m2 radiation intensity at sample surface center, temperature stability ±2℃ with SCR fast-cycle control
• Complete Combustion System: Pilot flame igniter with Φ4.0mm copper tube nozzle, 30mm flame length, 95% propane/air gas supply at 170KPa
• Professional Test Software: Windows-based LabVIEW style interface, displays transmittance vs time curves, bilingual Chinese/English interface with manuals

Technical Specifications

Each unit includes smoke density test software, bilingual operation manuals and complete accessories. Contact us today for the best quotation on this DX8368 plastic smoke density tester!
