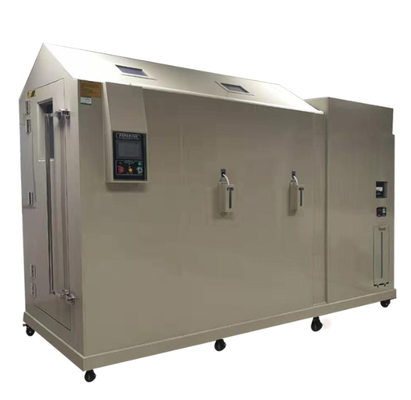

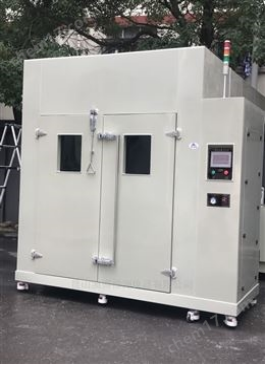

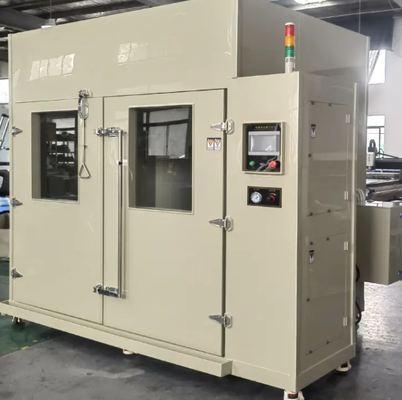

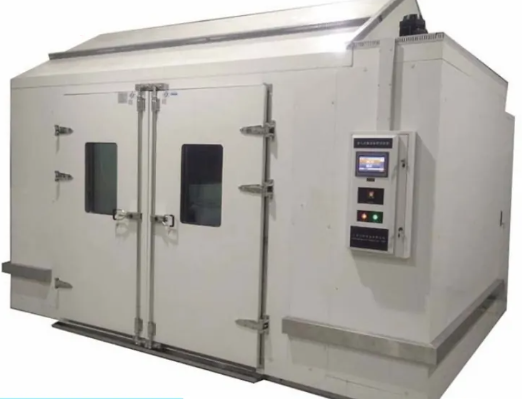

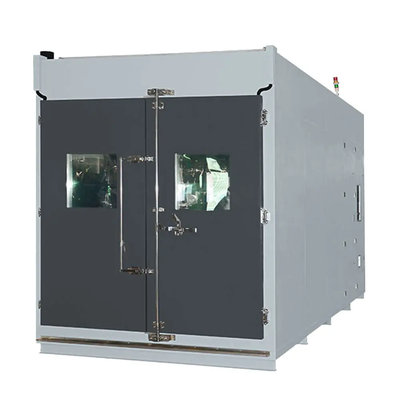

IEC61442-2023 Salt Spray Testing Machine For Large High-Voltage Wire And Cable Accessories

The Resistance to Ignition of The Spring Mattress and the Sofa Upholstered Furniture Testing Equipment


Scope:

Meet the performance indicators and comply with the requirements of GB/T22079-2008 IEC61442-2023 for humidity and salt spray testing.
Salt spray test method: Conducted in a closed corrosion resistance test.

Standard:
GB/T22079-2008 IEC61442-2023.

Technical parameters:

1. Studio size: 2000 mm x 2000 mm x 3500mm (width x depth x height) (excluding spire)
2. Outer box size: 2200mm × 2500 mm × 4250 mm (width × depth × height)
3. Door: Open the door, 2000mm x 2000mm (width x height)
4. The experiment shall be conducted in a damp and sealed corrosion-resistant environment, with a volume not exceeding 153 and a natural exhaust hole with an area not exceeding 80cm2
5. Mist generator: a turbine injector with continuous injection capability to generate water mist with 5um~10um droplets
10. Test time: 0-1000 hours, M, S; (Adjustable)
11. Observation window: 400 × 500mm (length × height)
12. spray mode: air flow spray, continuous/intermittent
13. Bottom load-bearing capacity: ≥ 500KG
15. Average * working hours:>2000h
16. Average lifespan:>8 years
17. Noise: ≤ 75dB
18. Rated voltage of the laboratory: AC (380 ± 38) V 50Hz ± 0.5Hz
19.AC:36KV
