IEC60754‐1 Standard Cable Halogen Acid Gas Content Testing Machine Tester

Large Image : IEC60754‐1 Standard Cable Halogen Acid Gas Content Testing Machine Tester

Product Details:

Place of Origin:	China
Brand Name:	DAXIAN
Certification:	ISO9001,CE
Model Number:	DX8332A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	30 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	30 sets per month

Contact Now

IEC60754‐1 Standard Cable Halogen Acid Gas Content Testing Machine Tester

Description

Machine Name:	Cable Halogen Acid Gas Content Testing Machine Tester	Standards:	IEC60754‐1
Applicable:	Cable And Wire	Material:	Fused Quartz Tube
Air Flow Meter:	20mL~200mL Adjustable	Power Supply:	220V, 60HZ,10A
Sampling:	500mg~1000mg	Warranty:	12 Months
Machine Name:	Cable Halogen Acid Gas Content Testing Machine Tester	Standards:	IEC60754‐1
Applicable:	Cable And Wire	Material:	Fused Quartz Tube
Air Flow Meter:	20mL~200mL Adjustable	Power Supply:	220V, 60HZ,10A
Sampling:	500mg~1000mg	Warranty:	12 Months
Highlight:	halogen acid gas tester , IEC60754-1 cable testing machine , wire testing equipment with warranty

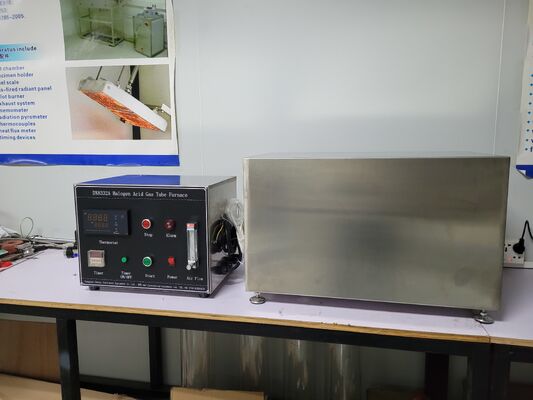

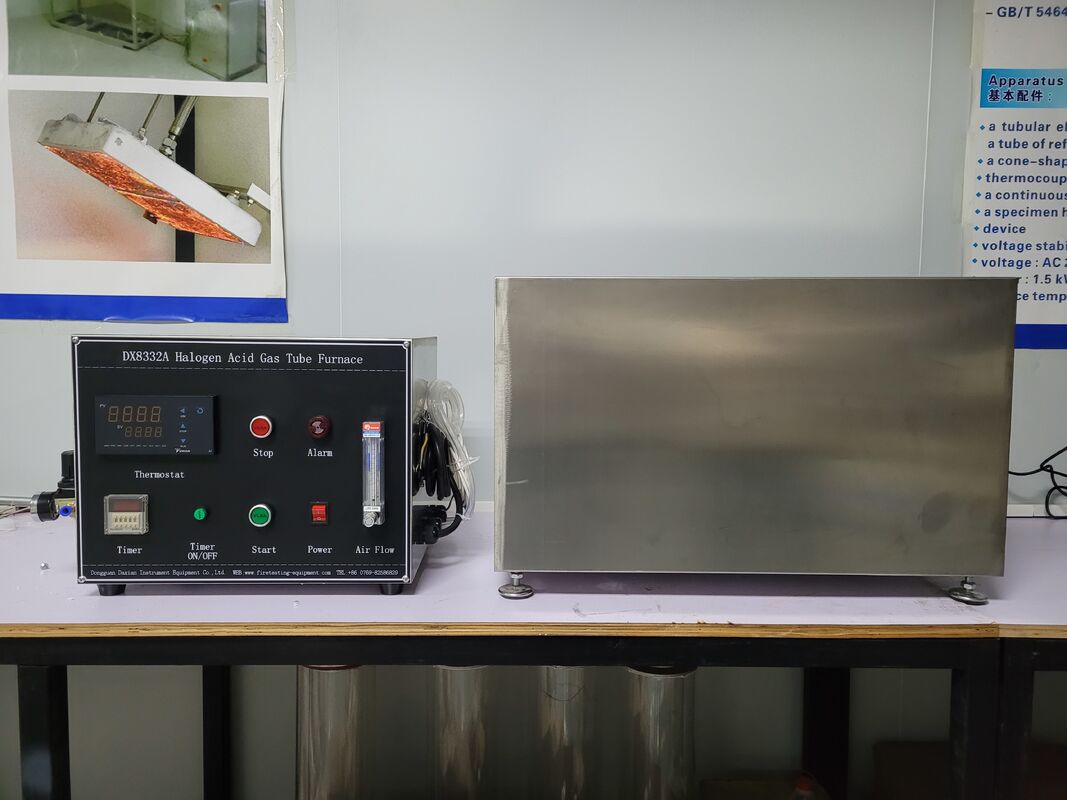

IEC60754-1 Standard Cable Halogen Acid Gas Content Testing Machine Tester

Product Overview

IEC60754-1 Halogen Acid Gas Release Measurement Tester for Cable is designed to determine the total amount of halogen acid gas in low-halogen and halogen-free flame-retardant cables, as well as measure gas acidity through PH value and conductivity analysis.

Compliance Standards

This testing equipment conforms to multiple international standards including:

GB/T17650.1-1998, GB/T17650.2-1998

IEC60754-1:1994, IEC60754-2:1991

GB/T19666-2005 "General Rules for Flame Retardant and Fire-resistant Wire and Cable" Table 6 regulations

GA306.1-2007 Section 6.3.4, GA306.2-2007 Section 6.3.4

UL2556-2007 Sections 9.10 and 9.11 requirements

Application Scope

Specifically designed for the determination of total halogen acid gas content in low-halogen and halogen-free flame-retardant cables, including acidity measurement through PH value and conductivity analysis.

Equipment Specifications

Tubular Furnace

Heating chamber dimensions: 600*φ42mm effective length and diameter

Adjustable electric heating system

Heating power: 220V / 10KW

Combustion Tube

Material: Refractory silica pipe resistant to corrosive gas

Inner diameter: 40mm

Length extension: 60-200mm from inlet side, 60-100mm from outlet side

Designed with gap for thermal expansion

Burning Boat

Material: Fused quartz tube

Dimensions: 100mm length, 25mm width, 10mm depth

Feeding method: Bar magnet and platinum wire pulling system

Gas Collection System

Utilizes two selected collection bottles

One bottle equipped with magnetic stirrer containing 220mL sodium hydroxide solution

Factory Visit

We welcome you to visit our factory for a comprehensive tour and demonstration of our testing equipment.
