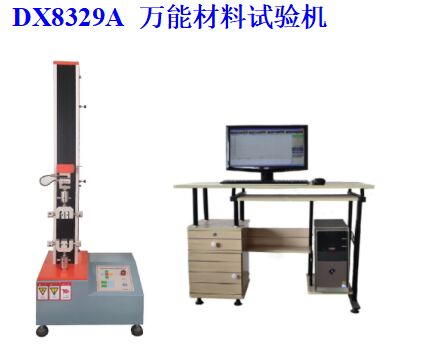

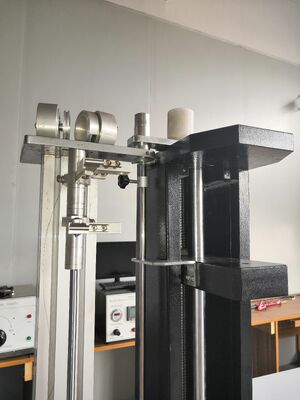

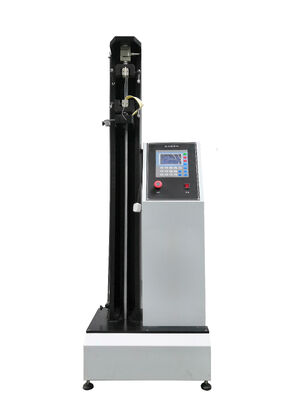

ASTM D903 Servo Tensile Testing Machine with Peel off fixture

ASTM D903 Servo Tensile Testing Machine with Peel off fixture
ASTM D903 Servo Tensile Testing Machine with Peel off fixture
ASTM D903 Servo Tensile Testing Machine with Peel off fixture ASTM D903 Servo Tensile Testing Machine with Peel off fixture ASTM D903 Servo Tensile Testing Machine with Peel off fixture ASTM D903 Servo Tensile Testing Machine with Peel off fixture ASTM D903 Servo Tensile Testing Machine with Peel off fixture

Large Image :  ASTM D903 Servo Tensile Testing Machine with Peel off fixture

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: ISO37、ASTM624B
Model Number: DX8327
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 pcs per month
Contact Now

ASTM D903 Servo Tensile Testing Machine with Peel off fixture

Description
Machine Name: Tensile Testing Machine Machine: With Computer、Peel Off Fixture
Standards: ISO37、ASTM624B Warranty: One Year
Tensile Range: 5 Kg Or 150 Kg (2 Sensors Included) Power Supply: AC 220V, 50Hz
Size (L X W X H): 500 Mm X 600 Mm X 800 Mm Weight: 150kg
Highlight:

ASTM D903 tensile testing machine

,

servo tensile testing machine with peel fixture

,

peel off fixture tensile tester

ASTM D903 Servo Tensile Testing Machine with Peel off fixture



1, Scope of application:
Widely applicable, suitable for industries such as rubber, plastic, wire and cable, footwear, leather, textile, papermaking, and metal copper aluminum wire, aluminum foil, etc; Can test the tensile strength, elongation, tear force, adhesion force, peel force, shear force, adhesion force, connection force, etc. of the sample. Using high-precision sensors to achieve high precision in sensing force; The elongation and tensile strength meet the standard ISO37; Tear resistance should refer to the standard ASTM624B.



2, Compliant with standards:
Meets the testing standards of ISO37, ASTM624B, UL1581, IEC 811, and UL817.



3. Technical Parameters / Specifications:



Category Parameter Details / Value
General Tensile Range 5 kg or 150 kg (2 sensors included)
  Maximum Travel 400 mm
  Load Accuracy ±0.5%
  Load Resolution 0.01 g
  Unit Conversion kg/lb or g/N
  Peak Lock Function Yes
Motor & Drive Primary Motor Panasonic Servo Motor (400W)
  Speed Regulation Motor AC Motor with Variable Frequency Drive
Speed Control Infinite Regulation Range 0.1 ~ 500 mm/min
  Preset Gear Speeds 50, 100, 250, 350, 500 mm/min (freely switchable)
  Speed Accuracy 50±0.5 mm/min, 500±1.0 mm/min
Measurement Induction Method High-precision Sensor
Application Tool Pressure Plate Tool Diameter: 5 cm (Suitable for compression ratio testing)
  Experiment Speed (for tool) 0.5 ~ 500 mm/min
Power & Dimensions Power Supply AC 220V, 50Hz
  Body Size (L x W x H) 500 mm x 600 mm x 800 mm





Welcome to visit our factory for sightseeing!

Supplier Company Name Dongguan Daxian Instrument Equipment CO.,Limited
Company Address Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China
Contact Person Sophia Su
Mobile Number 86-13266221899
Whatsapp 15024082385



ASTM D903 Servo Tensile Testing Machine with Peel off fixture 0

ASTM D903 Servo Tensile Testing Machine with Peel off fixture 1

ASTM D903 Servo Tensile Testing Machine with Peel off fixture 2
