Product Details:
|
| Customized Support: | OEM, ODM, OBM, Software Reengineering | Warranty: | 1 Year |
|---|---|---|---|
| Time Setting: | 0~99S Adjustable | Resistance Measurement Range:: | 0-2 10e17Ω. M |
| Measurement Voltage: | 10V, 25V, 50V, 100V, 250V, 500V, 1000V | Standards: | ASTM D257-2007 |
| Weight: | 15kg | External Dimensions: | 500 350 250(mm |
| Power Supply: | AC220V 50HZ | ||
| Highlight: | insulation material resistance tester,surface resistance testing machine,lab volume resistance tester |
||

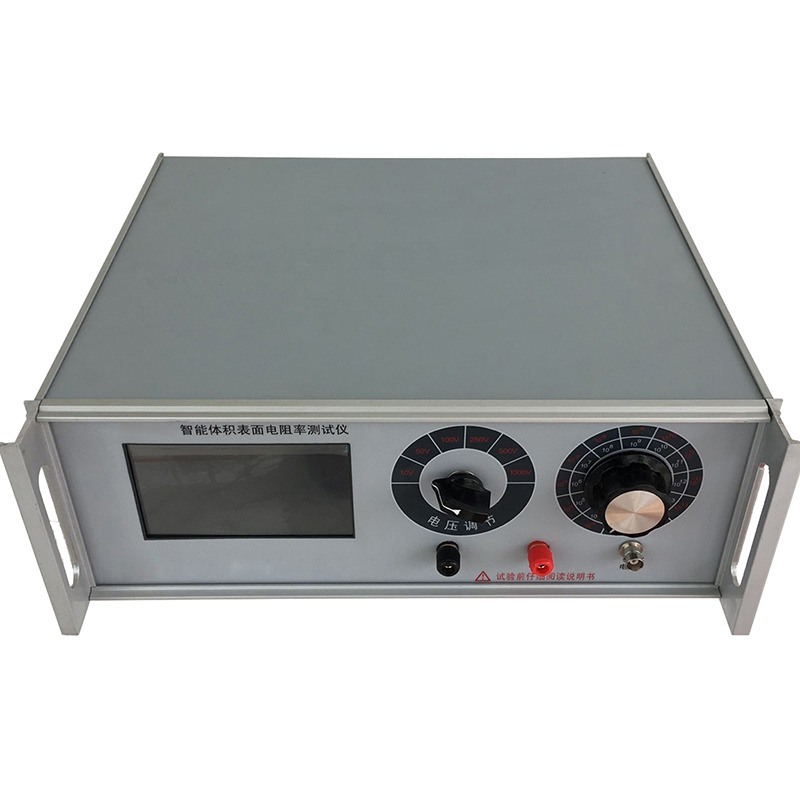

Suitable for measuring the insulation resistance of high resistance insulation materials, electrical products, various components, rubber and plastic used in wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulation materials.
Complies with the standards ASTM D257-2007 Volume Resistivity and GBT 1410-2006 Test Methods for Material Volume Resistivity and Surface Resistivity.
Main technical specification :
Measurement voltage: 10V, 25V, 50V, 100V (8500-9000), 250V, 500V, 1000V (1.3-1.4) optional
Resistance measurement range: 0-2×10e17Ω. m
Time setting: 0~99S adjustable
Power supply: AC220V 50HZ
External dimensions: 500×three hundred and fifty×250 (mm)
Weight: 15kg
Volume resistance/surface resistance test electrode
(1) Back electrode (2) Inner electrode (3) Circular outer electrode (4) Tested sample
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
![]()
