Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine

Large Image : Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine

Product Details:

Place of Origin:	China
Brand Name:	DAXIAN
Certification:	IEC62730-2024、IECIEC62217-2012
Model Number:	DX8428

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Wooden case
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3 sets per month

Contact Now

Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine

Description

Machine Name:	Insulators 5000hrs Multiple Stress Test Machine	Standard:	IEC62730-2024、IECIEC62217-2012
Test Sample:	HV Polymeric Insulators	Material:	Printed
Weight:	2ton	Dimentions:	3.1* 3.2* 3.6m
Delivery Time:	25 Work Days	Warranty:	24 Months
Power:	45KW	Supply:	380V
Highlight:	insulator multiple stress testing machine , IEC 62730-2024 salt test equipment , 5000h rain test lab machine

5000h Multiple Stress Insulator Testing Machine

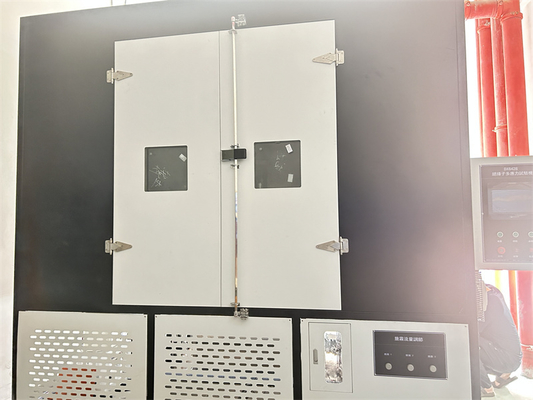

Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine 0

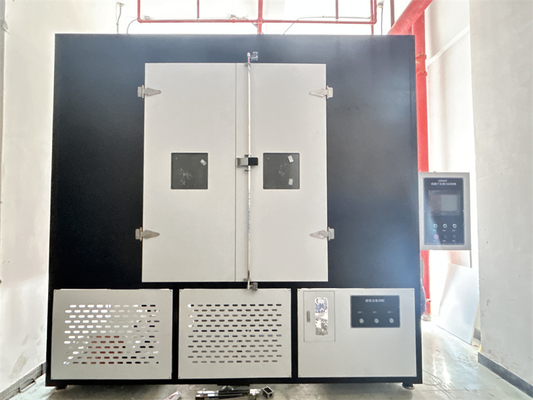

Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine 1

Remark :

The IEC 62730 standard is an international standard for multi stress aging testing of insulators used in photovoltaic (PV) systems, primarily evaluating the long-term durability of insulation materials in complex outdoor environments. The IEC 62730 Insulator Multi Stress Testing Machine is a testing device specifically designed to simulate the superposition of various environmental stresses and accelerate the aging of insulators.

Product name:	Technical Specifications for the 5000 - hour Multiple Stress Test Setup in accordance with IEC 62730:2024
IEC 62730:2024	In this document, the technical requirements of the 5000h multiple stress test bench are given according to IEC 62730:2024.
Test Procedur	The test shall be carried out in a moisture sealed corrosion-proof chamber, the volume of which shall not exceed 20 m3.
Test Conditions	The cycle of stresses applied to the insulators and repeated for a period of 5 000 h is shown in Figure 3. The cycle is designed so that the test specimens are also subjected to the effects of temperature variation and condensation .
Voltage	The power frequency test voltage in kilovolts is adjusted to the actual creepage distance of the test specimens. it is determined by dividing the creepage distance in millimetres by 34,6 (equal to a specific creepage distance of 20 mm/kV, calculated as phase-to-phase value) .
Solar Simulation	The simulated solar irradiation is provided by a xenon arc lamp with a nominal output of 6500 W and equipped with 2 boron silicate glass filters (see example in Figure 5) . The distance between the xenon lamp and test specimens is approximately 480 mm. A new lamp and filters shall be used at the beginning of each test. The filters and , if necessary, the lamp shall be replaced during the test according to the lamp manufacturer's recommendations .
Artificial Rain	The artificial rain shall be provided by nozzles mounted above the test specimens and outside their perimeter (see Figure 4 ). The average precipitation rate shall be in accordance with IEC 60060-1 . Water of a minimum resistivity of 85 nm shall be used. Each of the test specimens is sprayed individually.
Dry Heat	The chamber is heated up to 50 °C ± 2 °C; the time far the temperature to rise is 15 min as a maximum. NOTE it is recommended to heat and insulate the walls of the chamber.
Humidity	Nominal relative humidity: RH = 95 % ± 3 % at 50 °C.

DX8428 Insulator Multi Stress Testing Machine.pdf

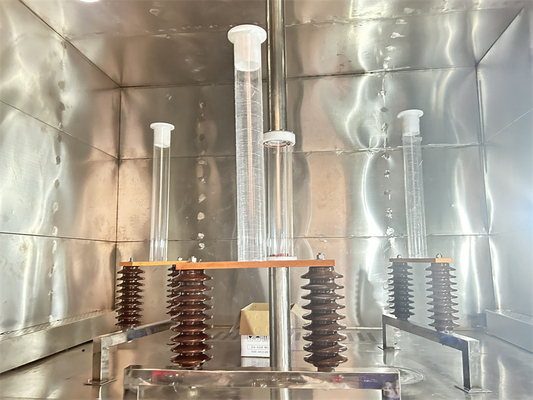

Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine 2

Insulator Multiple Stress Testing Equipment IEC 62730-2024 5000h Salt And Rain Test Machine 5

Welcome to visit our factory for sightseeing!

Supplier Company Name	Daxian Instrument Equipment CO.,Limited
Company Address	Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China
Contact Person	Sophia Su
Whatsapp/ Wechat	86-15024082385
Telephone Number	86-0769-82759287
Email	daxian02@jiance17.cn
