GB/T7106 Construction Materials Testing Equipment For Watertightness

GB/T7106 Construction Materials Testing Equipment For Watertightness
GB/T7106 Construction Materials Testing Equipment For Watertightness GB/T7106 Construction Materials Testing Equipment For Watertightness GB/T7106 Construction Materials Testing Equipment For Watertightness

Large Image :  GB/T7106 Construction Materials Testing Equipment For Watertightness

Product Details:
Place of Origin: China
Brand Name: DAXIAN
Certification: GB/T7106
Model Number: DX8685
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability: 30 sets per month
Contact Now

GB/T7106 Construction Materials Testing Equipment For Watertightness

Description
Name: Air Permeability, Watertightness, Wind Load Resistance Performance For Building External Windows And Doors Testing Machine Standards: GB/T7106
Rated Voltage And Power: AC380V 50Hz 20KW Sample Size: 2.7m×2.7m
Warranty: 12 Months Delivery Time: 30 Work Days
Voltage: AC380V 50Hz 20KW Package: Wooden Cases

Building External Windows And Doors Air Permeability, Watertightness, Wind Load Resistance Performance Test Furnace

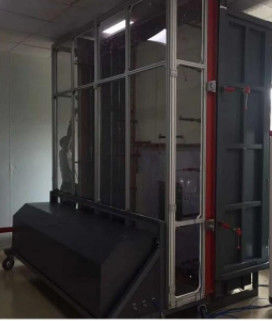

GB/T7106 Construction Materials Testing Equipment For Watertightness 0



Test items:


Used for the detection of three physical properties of doors and windows, namely air tightness, water tightness, and wind pressure resistance.


Standard:

GB/T7106: Test methods of air permeability,watertightness,wind load resistance performance for building external windows and doors.

Technical parameters:

Displacement test range: - 0.0~50.0 mm

Pressure testing range small range: - 600 Pa~+600 Pa

The scope of stress testing includes a large range: - 7000 Pa ~+7000 Pa

Water flow testing range: - 100~1000 L/h

Air flow test range: - 0.0~670 m ^ 3/h

Control cabinet: - (length x width x height): 950mm X 600mm X 870mm

Static pressure box (3030): - (length, width, height): 2800mm X 1800mm X 3800mm

Maximum detectable area for testing: - 3m X 3m

Maximum power of the entire system: - 13 KW Three dimensional dimensions of 3mx3m

doors and windows Equipment footprint size (mm): - length 4100xwidth 5500xheight 3500

Equipment net size (mm): - length 4100xwidth 3500 × height 3300





Configuration requirements:
1. Pressure box (compliant with GB/T7106-2019)
2. Test piece installation system (compliant with GB/T7106-2019)
3. Pressure supply system (compliant with GB/T7106-2019)
4. Water spraying system (compliant with GB/T7106-2019)
5. Measurement system (compliant with GB/T7106-2019)

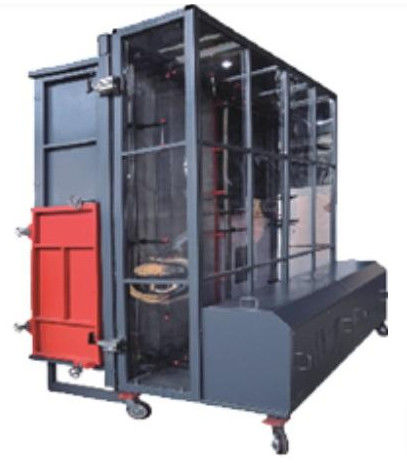

GB/T7106 Construction Materials Testing Equipment For Watertightness 1

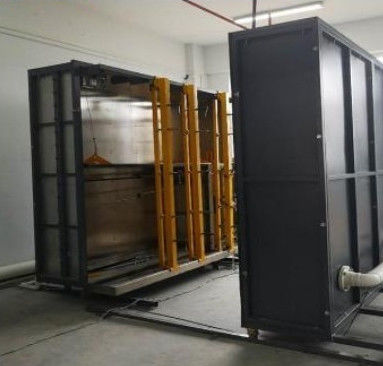

GB/T7106 Construction Materials Testing Equipment For Watertightness 2
