Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables

Large Image : Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables

Product Details:

Place of Origin:	China
Brand Name:	Daxian
Certification:	GB2951.4
Model Number:	DX8323

Payment & Shipping Terms:

Minimum Order Quantity:	One set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	15 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	15 sets per month

Contact Now

Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables

Description

Standard:	GB2951.4, GB2099-94, VDE0472, And IEC884-1	Scope Of Application:	For Assessing And Measuring The Performance Of Circular Cables Or Circular Insulated Wire Cores
Low Temperature Winding Sample Diameter:	Ф2.5~Ф12.5mm	Winding Rod Diameter:	Ф4.0~Ф37.5mm, Total Of 12 Pieces
Thread Sleeve:	Ф3.5、Ф6、Ф10、Ф12、Ф16mm ,two Pieces Each	Number Of Sample Twists And Turns:	2-10 Turns
Highlight:	Performance Wire Winding Testing Machine , Wire Winding Testing Machine

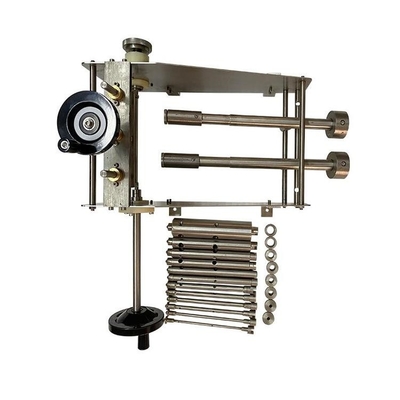

DX8323 Low Temperature Wire Winding Device

Low Temperature Wire Winding Testing Machine,assessing and measuring the performance of circular cables 0

Scope of application: Suitable for assessing and measuring the performance of circular cables or circular insulated wire cores at low temperatures.

Compliant with standards: Complies with test standards such as GB2951.4, GB2099-94, VDE0472, and IEC884-1, and works even better when used in conjunction with a low-temperature box.

Main parameters:

1. Low temperature winding sample diameter:Ф2.5~Ф12.5mm

2. Winding rod diameter:Ф4.0~Ф37.5mm, total of 12 pieces

3. Thread sleeve:Ф3.5,Ф6,Ф10,Ф12,Ф16mm ,two pieces each

4. Number of sample twists and turns: 2-10 turns

5. All devices in this series are made of stainless steel

Tag:

Contact Person: Miss. Sophia Su

Tel: +86-13266221899
