IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking

IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking
IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking
IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking

Large Image :  IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: IEC60587, ASTMD2303
Model Number: DX8427
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking

Description

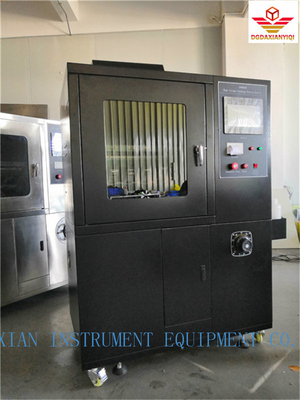

Model No.: DX8427 Product Name: Tracking And Erosion Testing Equipment
Material: Stainless Steel Dimensions: 1350L* 750W* 1800H (mm)
Power Supply: 6000W Weight: 300kg
High Light:

6000W Erosion Testing Machine

,

High Voltage Tracking Erosion Testing Machine

,

Insulating Materials Erosion Testing Machine

High Voltage Tracking Testing Equipment



Application:



It is applicable to the test of electric and electronic products, household appliances and their materials for resistance to electric trace and corrosion. Under the power frequency (48Hz - 62Hz) or the corresponding DC voltage, liquid pollutants and inclined samples are used to evaluate the resistance to electric trace and corrosion of electrical insulation materials used under severe environmental conditions through the measurement of resistance to electric trace and corrosion.





Sample preparation:

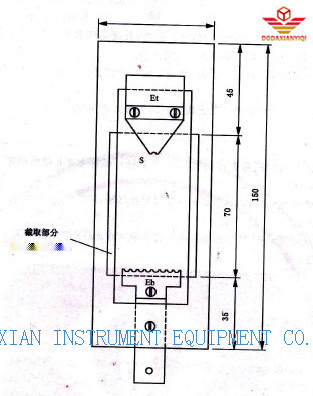

① The sample shall be processed into flakes with a thickness of 6mm and a size of 50 × 120mm, and the electrode mounting hole is drilled, and a reference mark line is made at 45mm of the lower edge of the sample.
② Clean the sample with distilled water or deionized water to make its surface free of any dirt. If the sample surface is smooth, it should be polished slightly. The specific method is to polish the sample with 1500#.



IEC 60587 Insulating Materials Erosion Testing Machine High Voltage Tracking 0





Standards:



IEC60587, ASTMD2303.





Technical parameters:



Dimensions 1350L*  750W* 1800H (mm)
Working room volume 800L *750W* 850H (mm)
Electrode 0.5mm thick ,material: stainless steel
Test voltage

AC 0v-6000v stepless adjustable

DC 0v-8400v stepless adjustable

Power supply 6000W
Liquid flow range 0.016-1.5ml/min can be set arbitrarily
Dropping accuracy 0.5%
Test time 0-10 hours can be set arbitrarily


Configuration of contaminated liquid:


① . Concentration requirements for contaminated solution: use distilled water to prepare a mixed solution of (0.1 ± 0.002)% analytical pure NH4Cl (ammonia chloride) and (0.02 ± 0.002)% isooctyl phenoxy Polyethoxyethanol non-ionic wetting agent.
② . Preparation method of contaminated solution: add 2000ml distilled water to the measuring cup, weigh 2G of NH4Cl analytical pure solid and 0.4g of isooctyl phenoxy Polyethoxyethanol with a balance, add them to the distilled water, and stir them evenly with a glass rod.

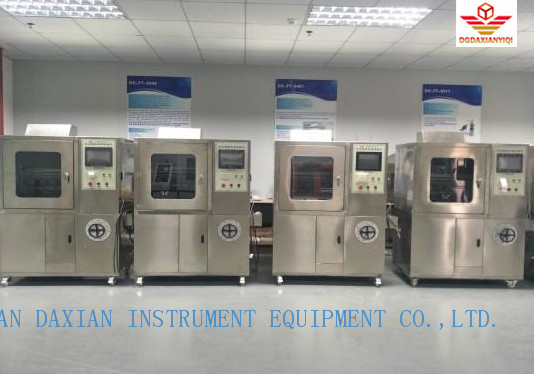

Welcome to visit our factory for sightseeing !
