Sulfur Dioxide Environment Test Equipment Hydrogen Sulfide Chamber

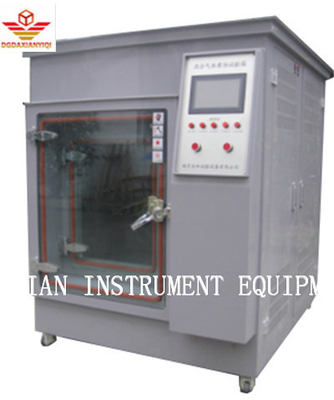

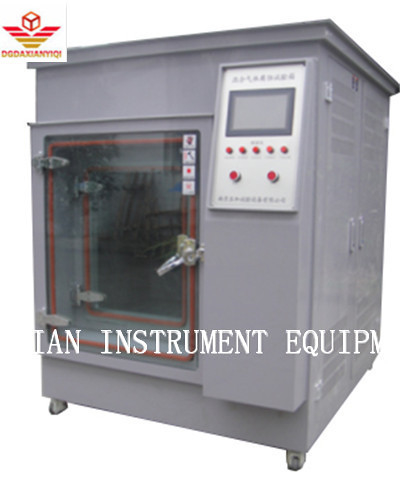

Sulfur Dioxide (Hydrogen Sulfide) Test Chamber

Standard:

Sulfur dioxide corrosion test for metallic and other non-metallic organic coatings under normal condensation conditions.

Safety protection device:

Test chamber: overtemperature protection, overall equipment timing
Others: leakage protection, short circuit protection, water shortage alarm.

Sulfur dioxide concentration control:

The gas concentration is controlled by the metering buoy
The air duct is connected with corrosion-resistant silicone hose
The waste discharge machine adopts centrifugal plastic fan
The waste gas is filtered with activated carbon and soda ash, and then discharged outdoors by exhaust fan.

Heating system:

High-speed electric heater and infrared heating system are adopted, with high efficiency and high efficiency
Studio size: 600 * 550 * 900mm
Overall dimension: 1050 * 1180 * 1510mm.

Technical indexes of gas corrosion tank:

1.1. Temperature range: RT + 10 ℃ ~ 50 ℃
1.2. Humidity range: > 95% RH (actual humidity in the working room)
1.3. Temperature uniformity: ≤ 2 ℃
1.4. Temperature fluctuation: ± 0.5 ℃
1.5. Gas generation method: steel cylinder method
1.6. Sulfur oxide gas concentration: 0.1 ~ 1.0% (volume percentage)

Installation site:

The ground is flat and well ventilated
There is no strong vibration around the equipment
There is no strong electromagnetic field around the equipment
There are no inflammable, explosive, corrosive substances and dust around the equipment
Installation requirements
Appropriate use and maintenance space is reserved around the equipment, as shown in the figure:
A: Not less than 60cm
B: Not less than 60cm
C: Not less than 120cm
(Note: (the inclination angle of the equipment shall not exceed 15 ℃)

Environmental conditions:

Temperature: 5 ℃ ~ + 28 ℃ (average temperature within 24 hours ≤ 28 ℃

Air pressure: 86kpa ～ 106kpa
Power supply condition} voltage range: AC (220 ± 10%) V
Allowable frequency fluctuation range: (50 ± 0.5) Hz single three wire system
The user is required to configure the air or power switch with corresponding capacity for the equipment at the installation site, and the switch must be used independently for the equipment
When the equipment is not working, the ambient temperature shall be kept within 0 ℃ ~ + 45 ℃
Net weight of equipment: 130kg.
