Product Details:
|
| Usage: | Silicone Rubber Corrosion Resistance Testing Machine | Standards: | IEC60587-2007, ASTM D2303 |
|---|---|---|---|
| Power: | AC 220V/50HZ | Test Time: | 6h |
| Test Voltage: | 100~6000V Adjustable | Warranty: | 12 Months |
| High Light: | Tracking Erosion Plastic Testing Equipment,AC 220V Plastic Testing Equipment,50HZ Tracking Erosion Tester |
||

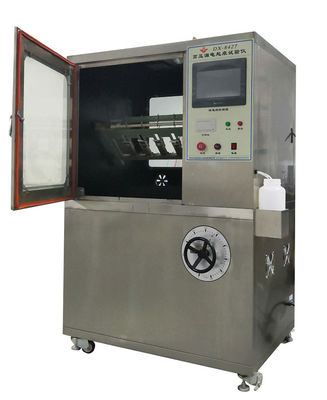

IEC60587 Testing Equipment Insulating Materials Liquid-Contaminant, Inclined-Plane Tracking And Erosion Test Machine
Model: DX8427
Scope:
These test methods cover the evaluation of the relative tracking and erosion resistance of insulating solids using the liquid-contaminant, inclined-plane test.2 The following test methods also can be used to evaluate the tracking resistance of materials: D2132 (contaminants: dust and fog) and D3638 (contaminant: conductive liquid drops).
Standard:
IEC60587-2007, ASTMD2303.
Parameters:
| Name | DX8427 High Voltage Tracking Index Tester |
|
Box |
≥ 0.5 cubic meters |
|
Drop size |
44 to 50 drops / cm3 |
|
Power supply |
AC 220V, 50Hz |
|
Drip height |
30mm ~ 40mm adjustable |
|
Electrode Pressure |
1.00N±0.05N |
Performance Index:
| Testing Voltage power | 6000W |
| Instrument Dimensions | 1500L*1050W*2000H (mm) |
| Operationg Room Size | 1100L*900W*950H (mm) |
| Electrode | thickness: 0.5mm; material: stainless steel |
| Gape of Electrade | 50.0mm±0.1 |
| Liquid Flow Range | 0.0016-1.5ml/min optional setting |
| Testing time | 0-10 hours, setting freely |
1. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;
2. Dropping liquid Precision: 0.5%;
3. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
