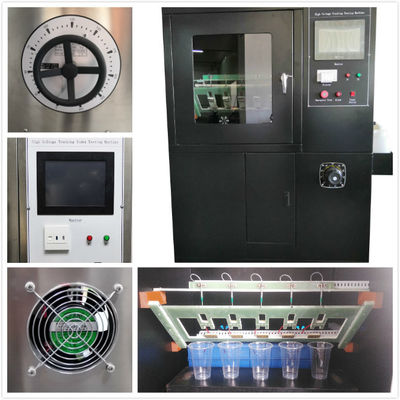

48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester

48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester
48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester
48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester 48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester 48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester 48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester

Large Image :  48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: ASTM D2303,IEC60587-2007
Model Number: DX8427
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5 sets per month

48Hz 62Hz Silicone Rubber Material High Voltage Tracking Index Tester

Description
Usage: High Voltage Tracking Index Tester Power: AC 220V/50HZ
Standards: IEC60587-2007, ASTM D2303 Drop Height: 30mm ~ 40mm Adjustable
Test Voltage: 100~6000V Adjustable Warranty: 12 Months
High Light:

48Hz High Voltage Tracking Tester

,

62Hz High Voltage Tracking Tester

,

220V High Voltage Tracking Tester

IEC60587 6 KV High Voltage Tracking Index Tester ASTM D2303

Scope :

Applicable to electrical and electronic products, household appliances and their materials for electrical tracking resistance and corrosion testing, simulating the power frequency (48Hz-62Hz), using liquid pollutants and inclined surface samples, passing the electrical tracking resistance The measurement of corrosion and corrosion assesses the resistance to tracking and corrosion of electrical insulating materials used under severe environmental conditions.

Standard:

IEC60587-2007, ASTM D2303

Parameters:

Name
High Voltage Tracking Index Tester
Box
≥ 0.5 cubic meters
Drop size
44 to 50 drops / cm3
Power supply
AC 220V, 50Hz
Electrical load
100 ~ 6000V adjustable
Drip height
30mm ~ 40mm adjustable
Electrode Pressure
1.00N±0.05N
Flow range
 0.00185 to 2 ml / min
Working speed
 0.1 to 15 rev / min

Preparation of the sample:

Process the sample into a sheet, preferably 6mm in thickness, 50×120mm in size, drilled with electrode mounting holes, and make a reference mark line at 45mm from the lower edge of the sample, and clean the sample with distilled or deionized water , Make the surface without any dirt, if the sample surface is smooth, it should be slightly polished;

Preparation of filter paper liner:

Use the equipped knife to cut the filter paper into the shape shown in Figure 4, and pad the cut filter paper between the upper electrode and the sample. If you use a thicker filter paper, you usually need to pad 3 to 5 layers.
