AAMA 501.1 Construction Materials Testing Equipment Water Penetration Tester

Large Image : AAMA 501.1 Construction Materials Testing Equipment Water Penetration Tester

Product Details:

Place of Origin:	China
Brand Name:	DAXIAN
Certification:	AAMA 501.1，ENV13050
Model Number:	DX8374

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	45 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability:	30 sets per month

Contact Now

AAMA 501.1 Construction Materials Testing Equipment Water Penetration Tester

Description

Name:	AAMA 501.1 Building External Windows And Doors Dynamic Water Penetration Testing Equipment ENV13050	Application:	Dynamic Water Test
Standards:	AAMA 501.1，ENV13050	Power:	AC380V, 3KW
Use Space:	3000×3000×10000mm	Warranty:	12 Months
Highlight:	3KW Water Penetration Tester , AAMA 501.1 Water Penetration Tester , AAMA 501.1 Construction Materials Testing Equipment

AAMA 501.1 Building External Windows And Doors Dynamic Water Penetration Testing Equipment ENV13050

【Test items】

This test method determines the equipment and procedures for detecting the water permeability of external windows, curtain walls and doors with dynamic pressure.

【Standard】:

- AAMA501

- ENV13050

- ASTME331

【Features】

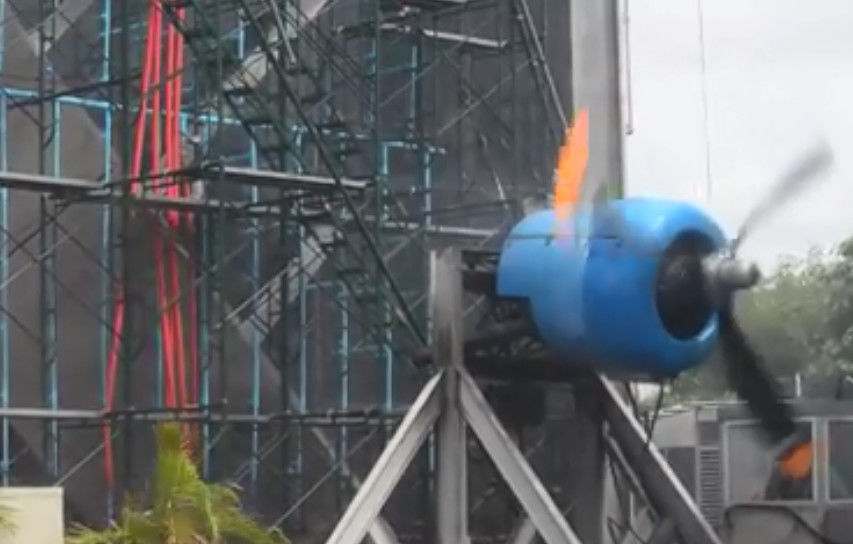

-Dynamic watertight performance of building curtain wall The axial flow fan detects that the axis of the airflow from the duct is horizontal and orthogonal to the outer surface of the sample.
-The fan is fixed on a frame device that can move the fan at a set speed in both vertical and horizontal directions to blow the controlled airflow to all places on the outer surface of the sample.
-The spray device sprays the specified amount of water evenly on the outdoor surface of the test piece, the nozzles are arranged uniformly, the spray volume of the device can be adjusted, and measures are taken to ensure the uniformity of the spray volume, which can be on the outer surface of the test piece A continuous and constant water film is formed on the surface.

Technical parameters:

Equipment area (length×width×height): 3000×3000×10000mm

Power: AC380V, 3KW

Test procedure:

Test procedure:
1. The test sample should be installed on a surface of the test cell or as a surface of the cell.
2. Before the test, sufficient time should be allowed to allow all the sealants to reach the appropriate state recommended by the manufacturer.
3. The water flow should be applied on the outdoor surface of the sample, and the spray rate measured on the measured surface of the sample is 3.4L/m2.min (5gal/ft2.h).
4. Together with the water spray, adopt and maintain dynamic oncoming airflow. The time cannot be less than 15 minutes.
5. The following conditions will not be considered as water seepage: within the 15-minute test period, 15 ml (1/2 ounce) of water is collected on the top of the internal packing or on the inner window sill integrated with the system
