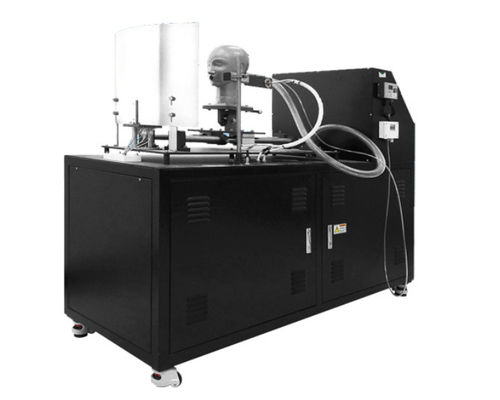

Product Details:
|
| Product Name: | EN 136: 1998 Mask Heat Radiation Tester | Size: | 1,240(W)X700mm(D)X1,600(H)mm |
|---|---|---|---|
| Weight: | 1 | Test Area: | 100cm² |
| Power Source: | AC220V 50Hz | Warranty: | 12 Months |
| High Light: | EN 136 1998 Mask Tester,AC220V 50Hz Mask Tester,GB/T 16556: 2007 radiation tester |
||
| Size | 1,240(W)X700mm(D)X1,600(H)mm |
| Weight | 152KG |
| Electrical requirements | 220V, 30A |
| Exhaust | 30㎥/min |
| Instructions | available |
Performance characteristics:
1. Equipped with electric heating tube heating device, the main heater power is 4000W, the auxiliary heater power is 2000W, adjusted by 2 PID temperature controllers;
2. The stainless steel reflector is used to enhance the heat radiation performance applied to the mask;
3. The metal head mold device can wear a mask and breathe freely;
4. The metal head mold sliding track can move its horizontal position to adjust the distance between the mask and the radiation source;
5. Equipped with a water-cooled heat flow meter device to measure the heat radiation flux at a standard distance;
6. Equipped with artificial lung breathing device, the breathing is a sinusoidal output mode, which truly simulates human breathing;
7. PLC control mode, respiratory frequency and respiratory volume can be set freely;
8. The micro-pressure sensor device automatically detects the failure of the mask during the test.
Test Results:
Test duration 20 minutes (if there is no significant abnormality)
If the sun visor is damaged, or other components show signs of damage, the explosion time will be slightly extended
