Product Details:
|
| Name: | Environmental Test Chamber Spray Water Constant Temperature Cooling Chamber | Equipment Length: | 2000 Mm |
|---|---|---|---|
| Sterilization Area: | 1000 Mm | Total Power: | 2.5KW |
| High Light: | 2.5KW Mask Sterilization Machine,1000mm Mask Disinfection Test Machine |
||

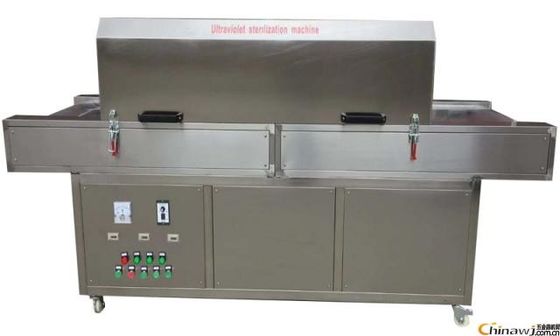

UV Ultraviolet Mask Disinfection Test Machine Mask Sterilization Machine
Scope:
Widely used in hospitals, food, tea, food and beverage processing and packaging equipment, food factories, cosmetics factories, dairy factories, breweries, beverage factories, bakeries and cold rooms, etc. And can extend the product shelf life and other standards.
Characteristics :
- It has the characteristics of uniform water flow, no dead ends, good light conditions, thorough sterilization, low energy consumption, and flexible and convenient installation.
- The main body is made of stainless steel, and there is no metal ion infestation problem. The product structure is a closed container quartz sleeve type with an electric control device inside. Among them, the key mask lamp management theory has a lifespan of up to 8,000 hours, The product has beautiful appearance, compact structure, convenient operation and maintenance.
- The sterilization efficiency can reach 99%-99.9%. The sterilization time of UV technology for several common bacteria** generally only takes less than 1 second. Traditional chemical disinfection methods such as chlorine and ozone generally require 20 minutes to 1 hour to achieve the UV C sterilization effect.
Technical parameters :
| Equipment length | 2000 mm |
| Sterilization area | 1000 mm |
| Product feed inlet area | 500 mm |
| Product discharge area | 500 mm |
| Entrance and exit height | 200 mm (adjustable) |
| Entrance and exit mesh belt width | 500 mm |
The distance between the conveyor belt and the ground: 750±20mm
Ultraviolet light source effective light length 600mm
A total of 16 lamps are installed in the sterilization machine, each with a power of 20w. The ultraviolet lamps are inside, up, down, left, and right.
Instructions :
Outer body of working area tunnel: 1.2mm stainless steel set
Inner cavity of working area tunnel: a set of 1.0mm stainless steel plate
Body support frame: a set of Fangtong steel
Air transport system: a set of forced air transport combined exhaust fans (exhaust harmful gas)
Conveyor belt: Teflon
Conveying roller: clean friction-resistant roller
Mesh belt inorganic speed regulation range: 0-5m/min
Transport motor: 800W (frequency converter speed regulation)
Speed governor: 500W (stepless speed regulation)
Main switch: 20A
Total power: 2.5KW
Working voltage: 200V--220V(±5), three-wire system, 50Hz
