EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D

EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D
EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D

Large Image :  EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D

Product Details:
Place of Origin: China
Brand Name: Daxian
Certification: GB 19083-2010、YY 0469-2011、GB 2626-2019
Model Number: DX2022
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, In cash
Supply Ability: 15 sets per month
Contact Now

EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D

Description

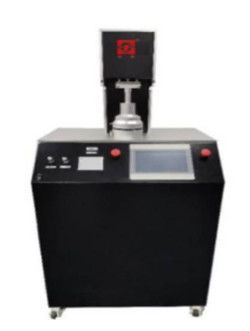

Product Name: Particle Filtration Efficiency Tester（PFE） External Dimensions: 950 × 600 × 600mm
Weight: 150kg Test Area: 100cm²
Power Source: AC220V 50Hz Warranty: 12 Months
Highlight:

fire testing equipment

,

fire test chamber

Laboratory Automated EN 149 Particle filtration efficiency tester(PFE)

Scope of application:

PFE tester is used to detect the filtration efficiency of particulate matter such as daily masks and filters. Factory direct sales, mask inhalation and exhalation filter or filtration efficiency tester automated filter tester.

Standards:

NIOSH 42 CFR 84, EN 149
YY/T 2626-2019 respiratory protection products


Technical Parameters:

Flow range
(20 ～ 100) L / min, accuracy 2%
Filtration efficiency
(0.001 ～ 99.999)%
Resistance
0 ～ 2000Pa, accuracy 2%
Test area
100cm²
Aerosol concentration
(12 ~ 20) mg / m³ (salinity), (50 ~ 200) mg / m³ (oily)





1. Aerosol: Sodium chloride (optional DOP, DEHS, paraffin oil, corn oil)
2.Test mode: initial efficiency and loading efficiency
3. Test temperature: (25 ± 5) ℃
4. Relative humidity: (30 ± 10)%
5. External dimensions: 950 × 600 × 600mm
6. Weight: 100kg
7. Power source: AC220V 50Hz
8. Gas source: flow 198L / min (0.6Mpa) at 550kPa


EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D 0
EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D 1

About daxian company:
DAXIAN's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, LED, photoelectricity, mobile, plasticand rubber, telecommunication, chemical industry, aerospace, building material and product, wire and cable,textile and fabrix, etc.
All DAXIAN testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.

EN149 PFE Laboratory Daily Protective Mask Particle Filtering Performance Test Bench standard-SC-FT-1702D 2
