Product Details:
|
| Power: | Electronic | Usage: | Determine The Lowest Oxygen Density |
|---|---|---|---|
| Product Name: | Limiting Oxygen Index Test Equipment | Standard: | GB/T2406.2, ASTM D2863, ISO 4589-2 |
| Power Supply: | AC 220V 50/60Hz 2A | Warranty: | 1 Year |
| High Light: | tracking index tester,plastic film testing equipment |
||

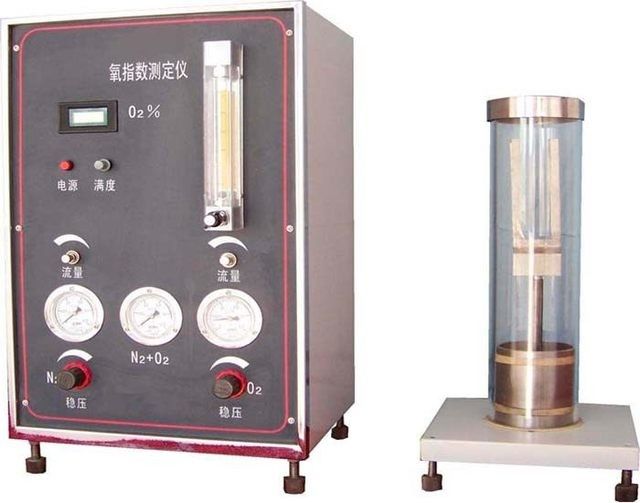

ASTM D2863 ISO 4589-3 Plastics Burning Behaviour Oxygen index Ambient Temperature Testing Equipment
Application:
The minimum concentration of oxygen that will just support flaming combustion in a flowing mixture of oxygen and nitrogen. A specimen is positioned vertically in a transparent test column and a mixture of oxygen and nitrogen is forced upward through the column. The specimen is ignited at the top. The oxygen concentration is adjusted until the specimen just supports combustion. The concentration reported is the volume percent.
| Item Name | ISO4589 ASTM D2863 Burning Material Limited Oxygen Index Testing |
|
Oxygen concentration measurement range |
0-100% |
| Resolution | 0.1% |
| Accuracy | ± 0.2% |
| Response time | <300ms |
| Oxygen stability time | <6s |
| Oxygen concentration sensor | England Servomex Paramagnetic type oxygen sensor, accuracy: ± 0.1% |
| Gas displacement | 50L/S |
| Size | 600(W)*310(D)*545(H)mm |
| Workbench size | 1500(W)*600(D)*800(H)mm |
| Weight | 30kg |
| Power supply | AC 220V, 50/60Hz, 5A |
